TE ConnectivitySwitzerland

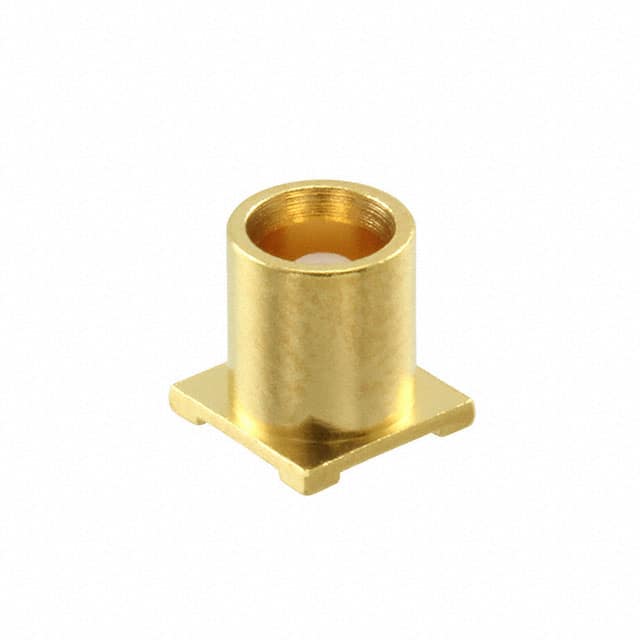

CONN MCX JACK STR 50 OHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Connector styleMCX
GenderFemale
Impedance50 Ω
Max frequency6 GHzMax
| Power | |
|---|---|
| Voltage Rating | 335 V |
| AC and DC characteristics | |
| Frequency - Max | 6 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~165°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Other | |
| Base Product Number | 966851 |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | - |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | - |
| Housing Color | Gold |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | 0.1dB |
| Mating Cycles | 500 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | Coaxicon |
| Shield Termination | Solder |
