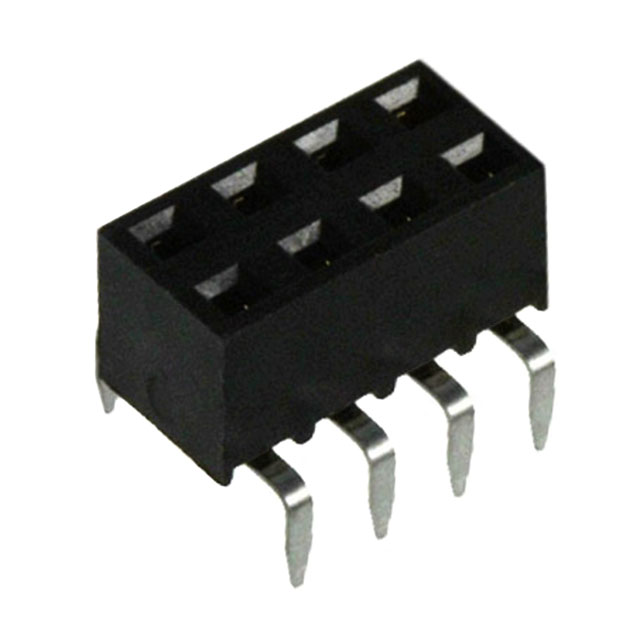

CONN RCPT 8POS 0.1 GOLD PCB
All alternatives
View full reportTechnical parameters
Key specs
Positions8
Rows2
Pitch2.54 mm
GenderFemale
Current rating2 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 2A |
| Voltage Rating | 1000VDC |
| Environment and package | |
| Insulation Height | 0.197" (5.00mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Package | Tube |
| Other | |
| Applications | - |
| Base Product Number | 966208 |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mfr | 3M |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Obsolete |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | 966 |
| Style | Board to Board |
| Termination | Solder |
