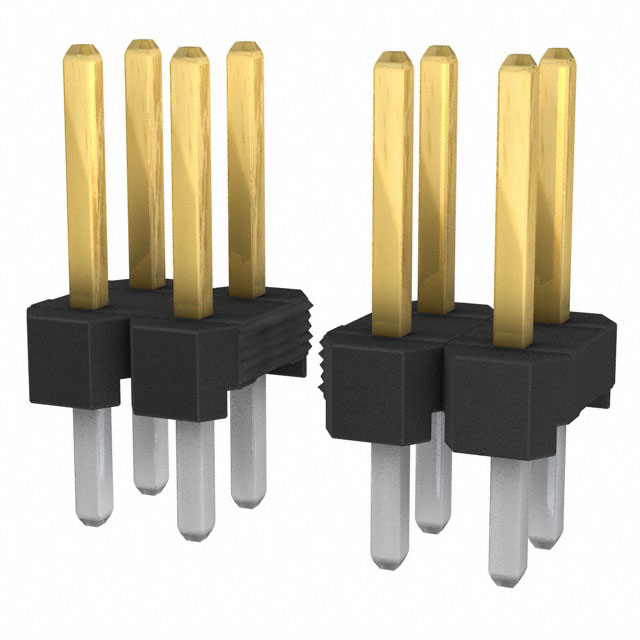

CONN HEADER VERT 80POS 2MM
All alternatives
View full reportTechnical parameters
Key specs
Positions80
Rows2
Pitch2 mm
GenderMale
Current rating1 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.060" (1.52mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Package | Bulk |
| Other | |
| Applications | - |
| Base Product Number | 951280 |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Length - Mating | 0.173" (4.40mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mfr | 3M |
| Number of Positions | 80 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | 0.343" (8.70mm) |
| Pitch - Mating | 0.079" (2.00mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Series | 951 |
| Shrouding | Unshrouded |
| Style | Board to Board |
| Termination | Solder |
