Fair-Rite Products Corp.United States

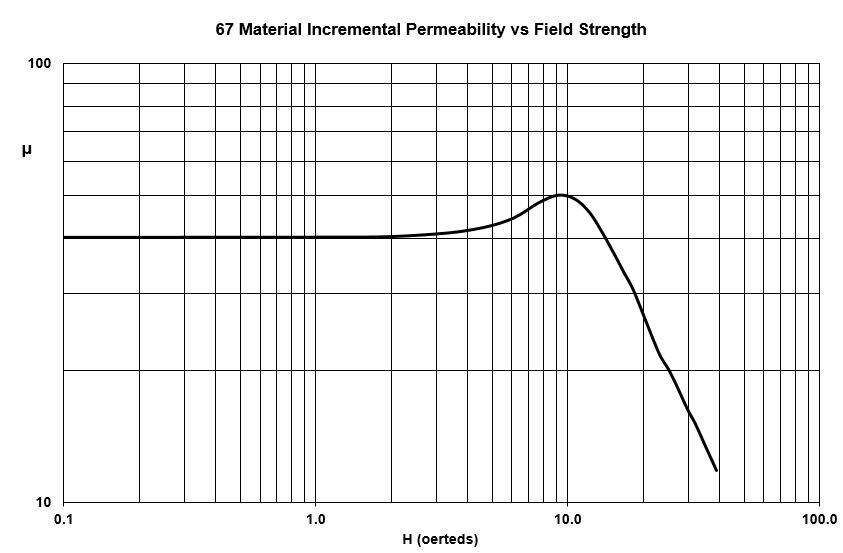

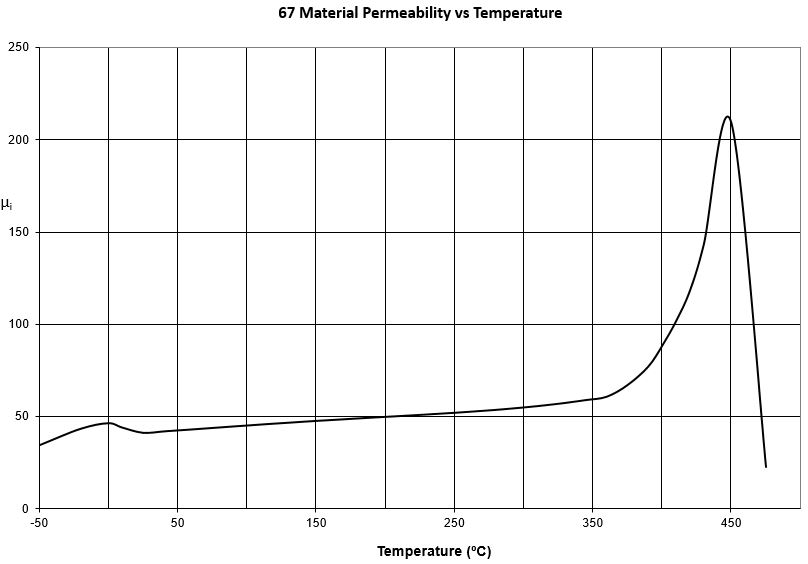

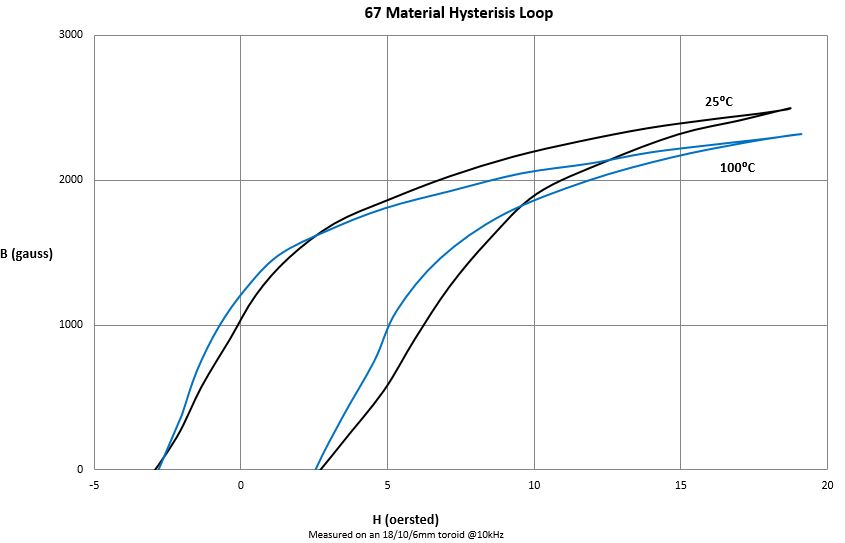

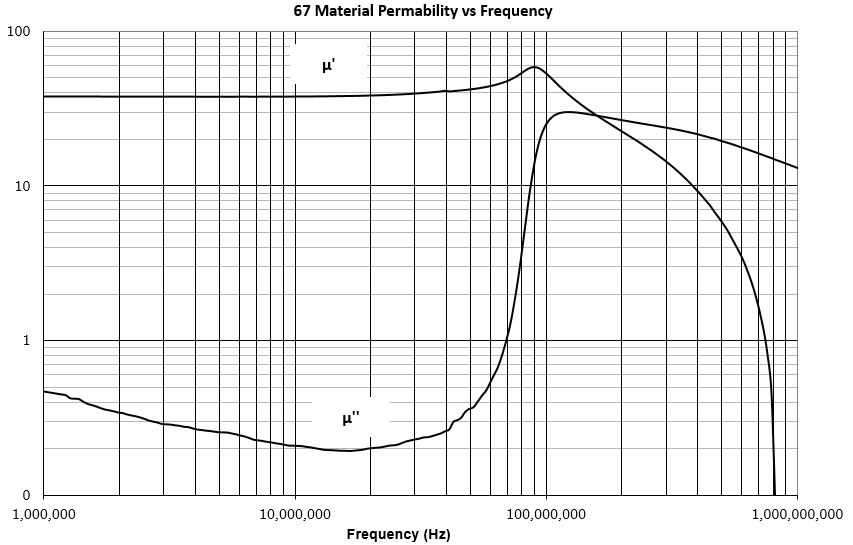

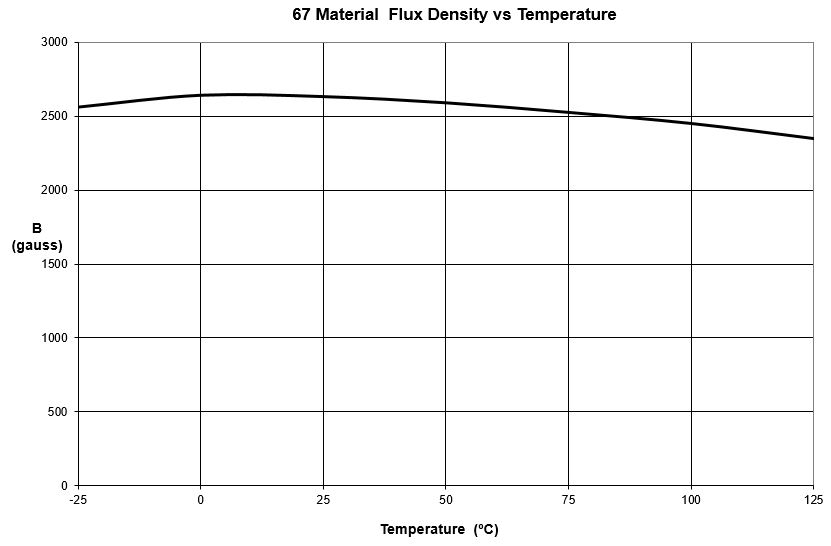

Part Number: 9467226002 617PLANAR E CORE 43/9.5/28 Planar EE and EI cores, with their low profile are suitable for board level installation allowing assembly without the need for plastic coilformers and can also allow windings integrated into multi-level PCBs. Planar ER cores with their low mass and low profile are suitable for Surface Mount installations in low power filter and transformer applications. -Planar EE, ER and EI cores can be supplied with the center post gapped to a mechanical dimension, or an A value. 33 (g) Σl/A : Core Constant, l : Effective Path Length, A : Effective Cross-Sectional Area, V : Effective Core Volume A : Inductance Factor Explanation of Part Numbers: Digits 1 & 2 = product class and 3 & 4 = material grade. A value is measured at 1 kHz, B < 10 gauss. A high frequency NiZn ferrite intended for broadband transformers. Antennas and Hi Q inductor applications up 50MHz. Excellent stability characteristics. Multi-Aperture Beads Rods Toroids Application Specific Custom Components **** Characteristic curves are measured on standard Toroids (18/10/6 mm) at 25°C and 10 kHz unless otherwise indicated. Impedance characteristics are measured on standard shield beads (3.5/1.3/6.0 mm) unless otherwise indicated. (see graph below)
