Cornell Dubilier Electronics (CDE)United States
CAP FILM 2UF 10% 600VDC AXIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance2 µF
Rated voltage600 V
Tolerance10 %
ESR5 mΩMax
| Power | |
|---|---|
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | 600V |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Axial |

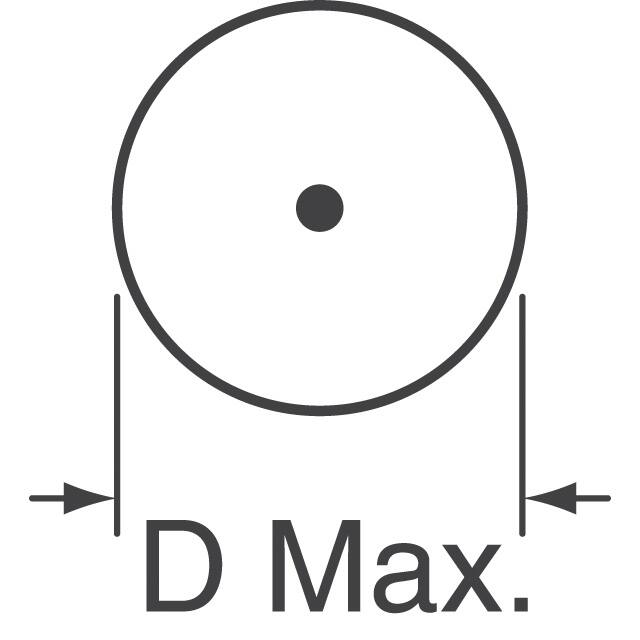

| Size / Dimension | 0.925" Dia x 1.811" L (23.50mm x 46.00mm) |
| Other | |
| Applications | High Pulse, DV/DT |
| Capacitance | 2 µF |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5 mOhms |
| Features | - |
| Lead Spacing | - |
| Mfr | Cornell Dubilier Electronics (CDE) |
| Product Status | Active |
| Ratings | - |
| Series | 940C |
| Termination | PC Pins |
| Tolerance | ±10% |
