924
Keystone ElectronicsUnited States

924

ActiveUSB, DVI, HDMI Connector Assemblies

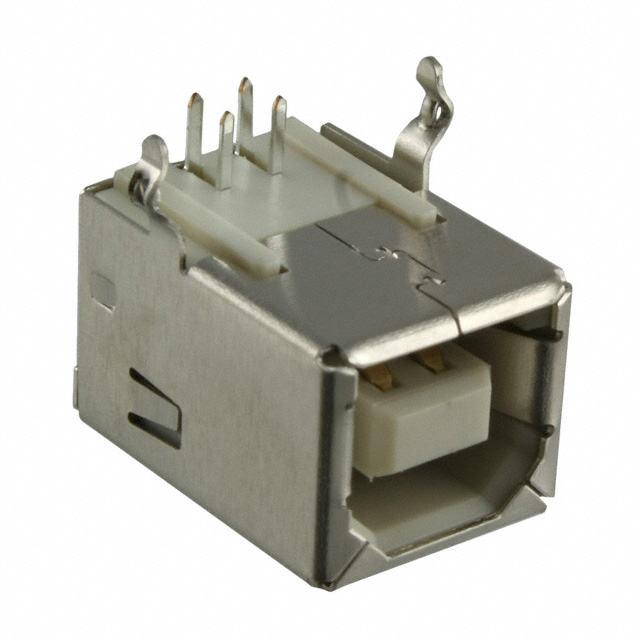

CONN RCPT USB2.0 TYPEB 4POS R/A

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Positions4
GenderFemale
Current rating1 AMax
Power
Current Rating (Amps)1A
Voltage - Rated30VAC
Environment and package
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Right Angle
Operating Temperature-55°C ~ 85°C
PackageBulk
Other
Connector TypeUSB-B (USB TYPE-B)
Contact FinishGold
FeaturesBoard Lock
GenderReceptacle
Ingress Protection-
Insulation Color-
Material Flammability Rating-
Mating Cycles1500
MfrKeystone Electronics
Number of Contacts4
Number of Ports1
Product StatusActive
Series-
Shell/Shielding MaterialSteel
ShieldingUnshielded
SpecificationsUSB 2.0
TerminationSolder

Documents

No documents are linked to this part yet.
