Schmartboard, Inc.United States

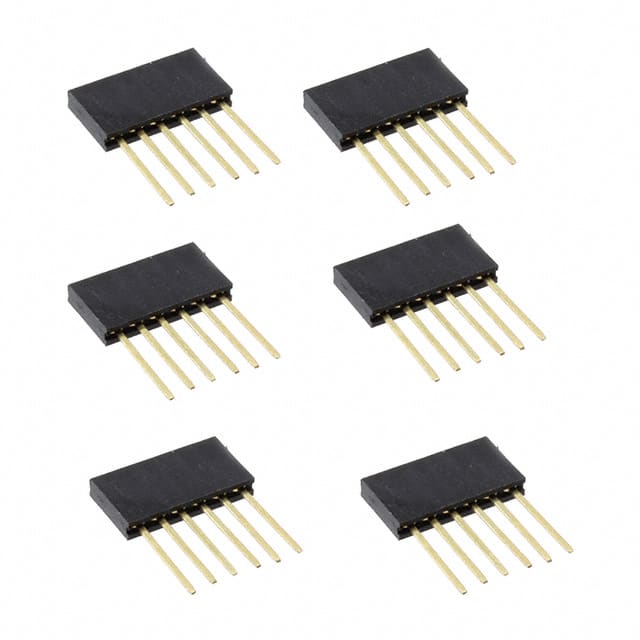

CONN HDR 6POS 0.1 GOLD PCB 6PC
All alternatives
View full reportTechnical parameters
Key specs
Positions6
Rows1
Pitch2.54 mm
GenderFemale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.335" (8.51mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Applications | - |
| Base Product Number | 920-0085 |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Post | 0.413" (10.50mm) |
| Contact Material | - |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | - |
| Material Flammability Rating | - |
| Mfr | Schmartboard, Inc. |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | - |
| Style | Board to Board |
| Termination | Solder |
