Adafruit Industries LLCUnited States

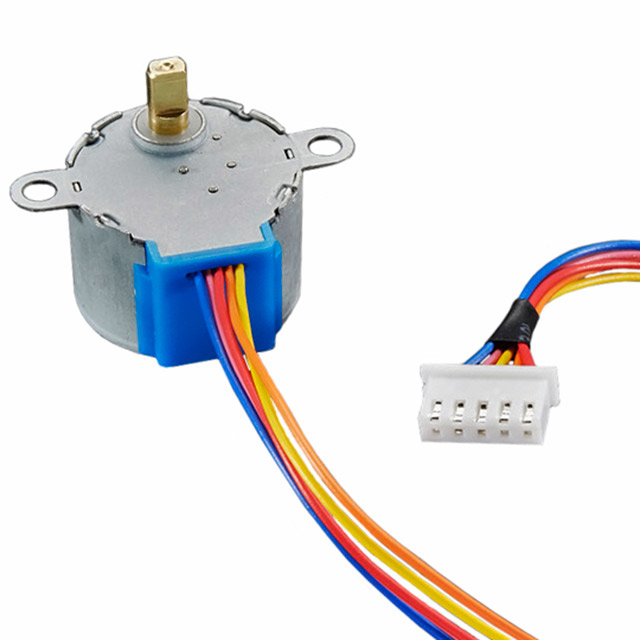

STEPPER MOTOR PM GEARED UNI 12V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Accuracy | - |
| Environment and package | |
| Mounting Hole Spacing | 1.378" (35.00mm) |
| Operating Temperature | - |
| Size / Dimension | Round - 1.100" Dia (28.00mm) |
| Other | |
| Approval Agency | - |
| Coil Resistance | 42 Ohms |
| Coil Type | Unipolar |
| Diameter - Shaft | 0.197" (5.00mm) |
| Features | Flatted Shaft |
| Length - Shaft and Bearing | 0.394" (10.00mm) |
| Mfr | Adafruit Industries LLC |
| Packaging | Bulk |
| Part Status | Active |
| Rotor Inertia | - |
| Series | - |
| Step Angle | 11.25° |
| Steps per Revolution | 513.0 |
| Termination Style | Wire Leads with Connector |
| Torque - Holding (oz-in / mNm) | 3.5 / 25 |
| Type | Permanent Magnet Gear Motor |
| Weight | 0.082 lb (37.19 g) |
