B&K PrecisionUnited States

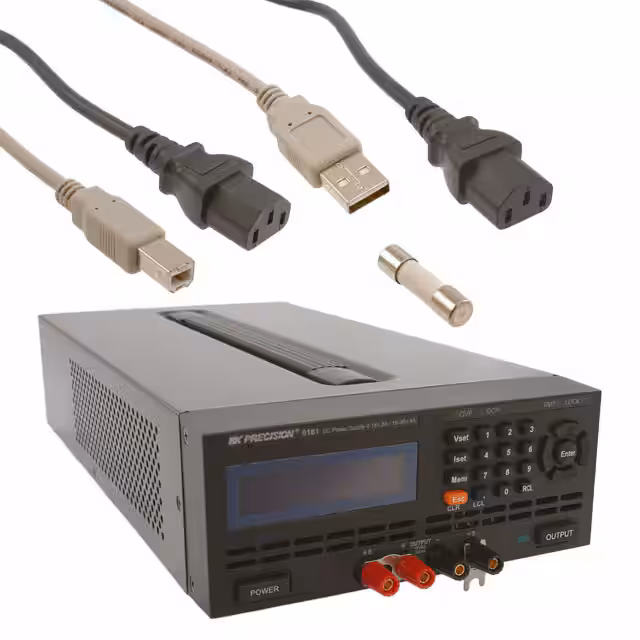

DC PWR SUPPLY 0-18V 8A/0-36V 4A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 0 ~ 8A |
| Power (Watts) | 144W |
| Voltage - Output | 0 ~ 36VDC |
| Voltage - Supply | 115VAC, 230VAC |
| AC and DC characteristics | |
| Accuracy - Voltmeter; Ammeter | 0.05% + 5mV; 0.1% + 2mA |
| Current Regulation - Line | 0.01% + 250µA |
| Current Regulation - Load | 0.01% + 250µA |
| Ripple | 3mV p-p, 0.35mV rms |
| Voltage Regulation - Line | 0.01% + 1mV |
| Voltage Regulation - Load | 0.01% + 1mV |
| Environment and package | |
| Package | Box |
| Size / Dimension | 16.339" L x 8.268" W x 3.425" H (415.00mm x 210.00mm x 87.00mm) |
| Other | |
| Display Type | LCD |
| Features | Memory, Programmable, Tracking, USB Interface |
| Mfr | B&K Precision |
| Number of Characters | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | 9180 |
| Type | Bench (AC to DC) |
| Weight | 17 lbs (7.7 kg) |
