WeidmüllerGermany

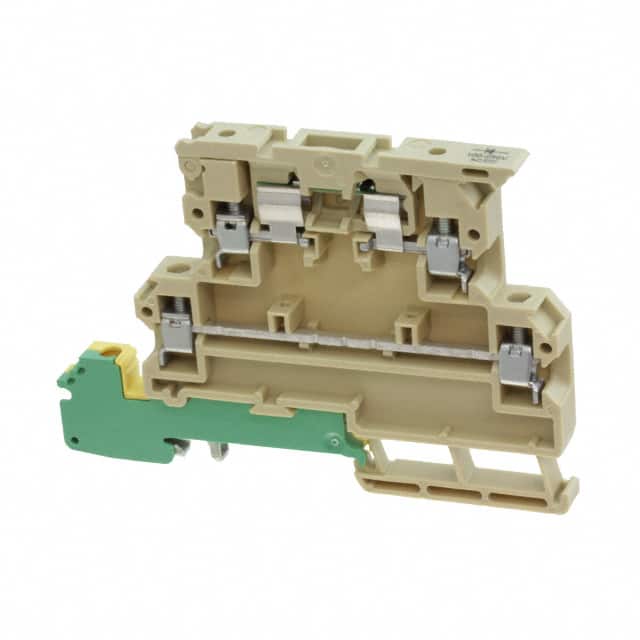

CONN TERM BLK DISCONN 12-26AWG
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - IEC | 500V |
| Voltage - UL | 300V |
| Environment and package | |
| Package | Bulk |
| Other | |
| Color | - |
| Disconnect Type | Fuse, Lever |
| Features | LED |
| Fuse Type | 5mm x 20mm |
| Material Flammability Rating | - |
| Material - Insulation | - |
| Mfr | Weidmüller |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Product Status | Active |
| Series | - |
| Stripping Length | 9mm |
| Terminal - Width | 8.0mm |
| Termination Style | Screw |
| Type | Disconnect, Feed Through |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.5-4mm² |
