B&K PrecisionUnited States

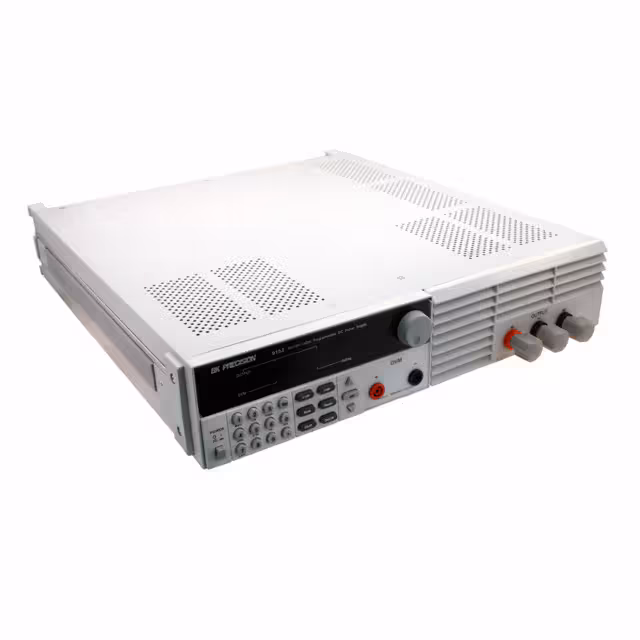

POWER SUPPLY DC 5.2V/60A PROGRAM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 0 ~ 60A |
| Power (Watts) | 312W |
| Voltage - Output | 0 ~ 5.2VDC |
| Voltage - Supply | 110VAC, 220VAC |
| AC and DC characteristics | |
| Accuracy - Voltmeter; Ammeter | 0.02% + 1.5mV; 0.05% + 15mA |
| Current Regulation - Line | 0.1% + 1mA |
| Current Regulation - Load | 0.1% + 10mA |
| Ripple | 3mV p-p |
| Voltage Regulation - Line | 0.02% + 0.1mV |
| Voltage Regulation - Load | 0.01% + 0.5mV |
| Environment and package | |
| Package | Box |
| Size / Dimension | 18.060" L x 16.880" W x 3.470" H (458.72mm x 428.75mm x 88.14mm) |
| Other | |
| Display Type | VFD |
| Features | Memory, Programmable, RS232 Port |
| Mfr | B&K Precision |
| Number of Characters | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | 9150 |
| Type | Bench (AC to DC) |
| Weight | 64 lbs (29 kg) |
Documents
No documents are linked to this part yet.
