B&K PrecisionUnited States

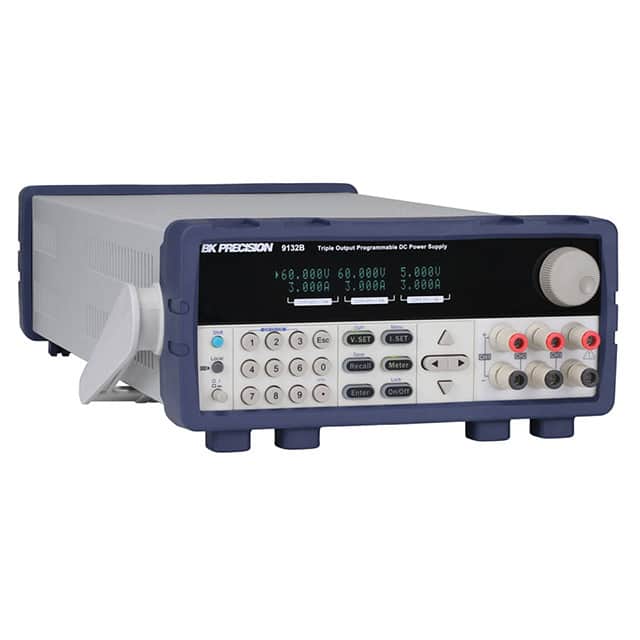

DC POWER SUPPLY 60V/3A 5V/3A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 0 ~ 3A, 0 ~ 3A, 0 ~ 3A |
| Power (Watts) | 375W |
| Voltage - Output | 0 ~ 60VDC, 0 ~ 60VDC, 0 ~ 5VDC |
| Voltage - Supply | 110VAC, 220VAC |
| AC and DC characteristics | |
| Accuracy - Voltmeter; Ammeter | 0.03% + 10mV; 0.1% + 5mA |
| Current Regulation - Line | 0.1% + 3mA |
| Current Regulation - Load | 0.1% + 3mA |
| Ripple | 1mV rms |
| Voltage Regulation - Line | 0.01% + 3mV |
| Voltage Regulation - Load | 0.01% + 3mV |
| Environment and package | |
| Package | Box |
| Size / Dimension | 17.520" L x 8.445" W x 3.472" H (445.00mm x 214.50mm x 88.20mm) |
| Other | |
| Display Type | VFD |
| Features | Memory, Programmable, RS232 and USB Interface |
| Mfr | B&K Precision |
| Number of Characters | - |
| Number of Outputs | 3 |
| Product Status | Obsolete |
| Series | 9130B |
| Type | Bench (AC to DC) |
| Weight | 33 lbs (15 kg) |
