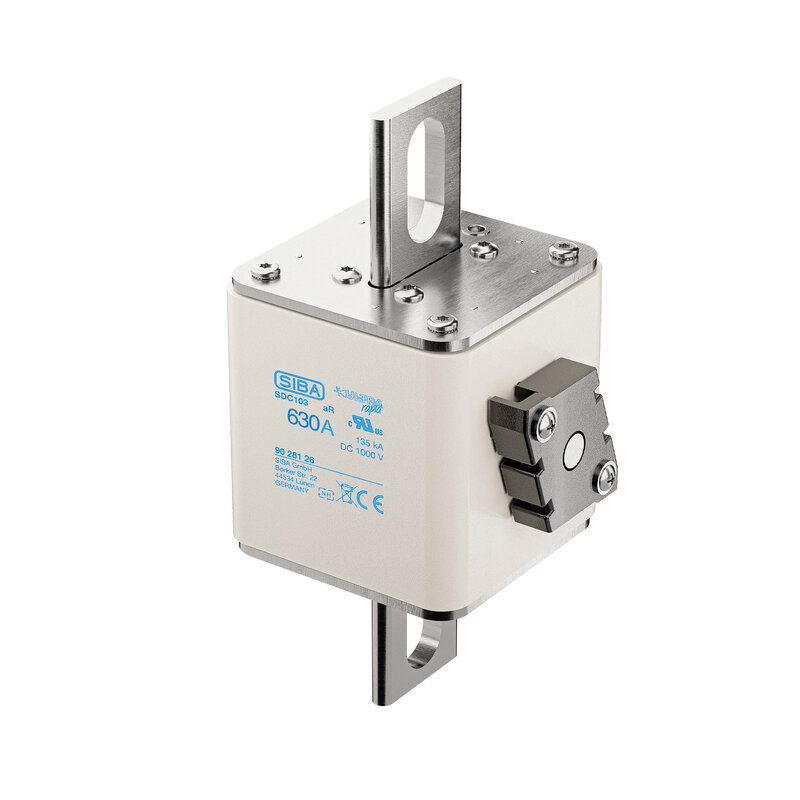

URS-Fuse-Link | SQB-DC103 | aR | DC 1000V | 630A | US long | central indicator | Sem.Cond.Prot. Fuse-Link | Square Dimension
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Rated current | 630A |
| Rated voltage | DC 1000 V |
| Environment and package | |
| Size | SQB-DC103 |
| Other | |
| 3D file | 3D file |
| Characteristic | aR |
| Contact | US long |
| Indicator / Striker Pin | Ms-Ad |
| Item number | 9028126.630 |
| Product group | Sem.Cond.Prot. Fuse-Link |
| Product subgroup | Square Dimension |
| Rated breaking capacity | 135kA DC 1000V |
| Standard UL | UL 248-13 |
| Type | Fuse-Link |
| Web PDF | Web PDF |
