Coto TechnologyUnited States

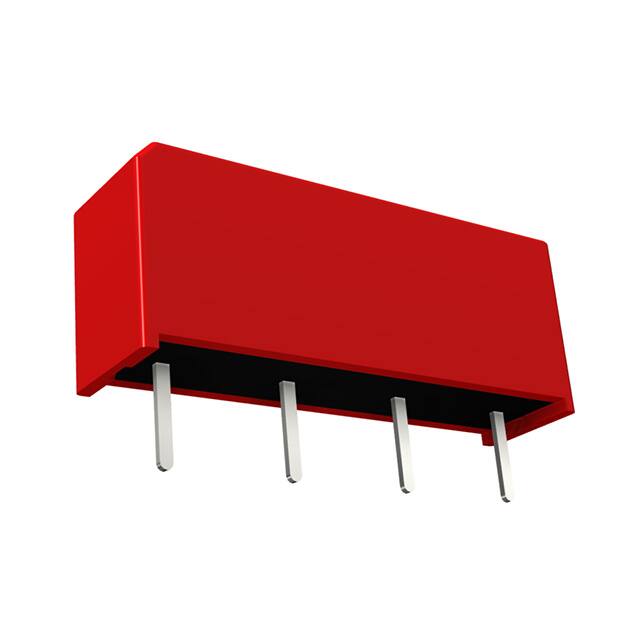

RELAY REED SPST 500MA 12V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Coil Current | 12 mA |
| Coil Voltage | 12VDC |
| Contact Rating (Current) | 500 mA |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Switching Voltage | 200VDC - Max |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C~85°C |
| Package | Tube |
| Other | |
| Coil Resistance | 1 kOhms |
| Coil Type | Non Latching |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | - |
| Features | - |
| Mfr | Coto Technology |
| Operate Time | 0.5 ms |
| Product Status | Obsolete |
| Release Time | 0.2 ms |
| Seal Rating | Sealed - Hermetically |
| Series | 9006 |
| Termination Style | PC Pin |
