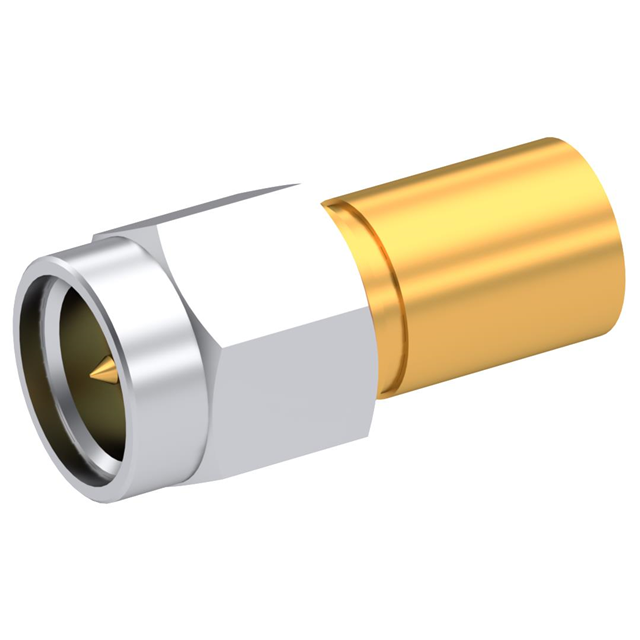

9001-1023-001
Radiall USA, Inc.France

9001-1023-001

ActiveCoaxial Connector (RF) Assemblies

SMA / STRAIGHT PLUG MALE CRIMP T

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleSMA
GenderMale
Impedance50 Ω
Max frequency12.4 GHzMax
Power
Voltage Rating335 V
AC and DC characteristics
Frequency - Max12.4 GHz
Impedance50 Ohms
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-65°C ~ 165°C
PackageBulk
Other
Base Product Number9001-1023
Body FinishGold
Body MaterialStainless Steel
Cable GroupRG-55, 142, 223
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleSMA
Connector TypePlug, Male Pin
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Features-
Housing ColorGold
Includes-
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrRadiall USA, Inc.
Number of Ports1
Product StatusActive
Series-
Shield TerminationCrimp
