TE ConnectivitySwitzerland

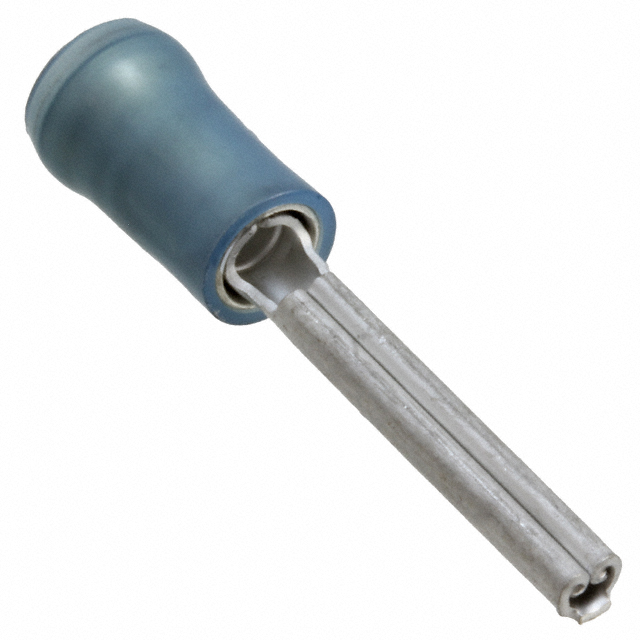

CONN WIRE PIN TERM 14-16AWG PIDG
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Bulk |
| Other | |
| Base Product Number | 160402 |
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
| Features | - |
| Insulation | Insulated |
| Insulation Diameter | 0.170" (4.32mm) |
| Length - Overall | 1.142" (29.00mm) |
| Length - Pin | 0.598" (15.19mm) |
| Length - Termination | 0.548" (13.92mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | TE Connectivity AMP Connectors |
| Pin Diameter | 0.093" (2.36mm) |
| Product Status | Obsolete |
| Series | PIDG |
| Termination | Crimp |
| Wire Gauge | 14-16 AWG |
