TXC CORPORATIONTaiwan, China
CRYSTAL 25.0000MHZ 10PF SMD
All alternatives
View full reportTechnical parameters
Key specs
Frequency25 MHz
Frequency tolerance10 ppm
Load capacitance10 pF
ESR100 ΩMax
| AC and DC characteristics | |
|---|---|
| Frequency | 25 MHz |
| Frequency Stability | ±10ppm |
| Frequency Tolerance | ±10ppm |
| Environment and package | |

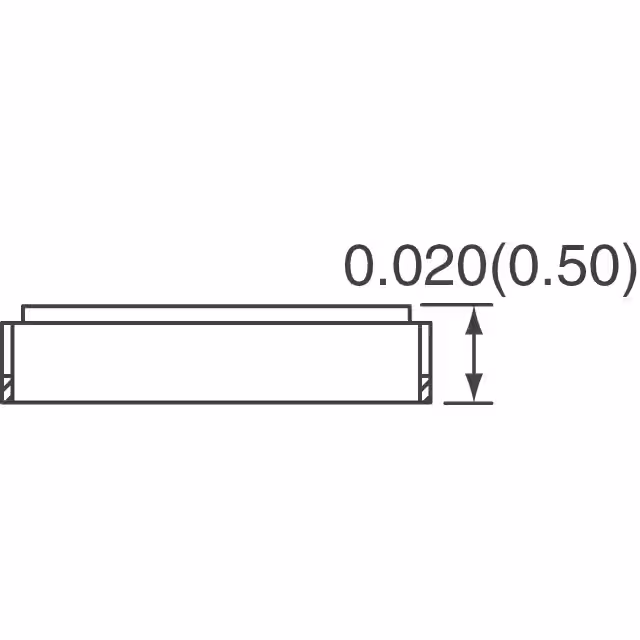

| Height - Seated (Max) | 0.022" (0.55mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

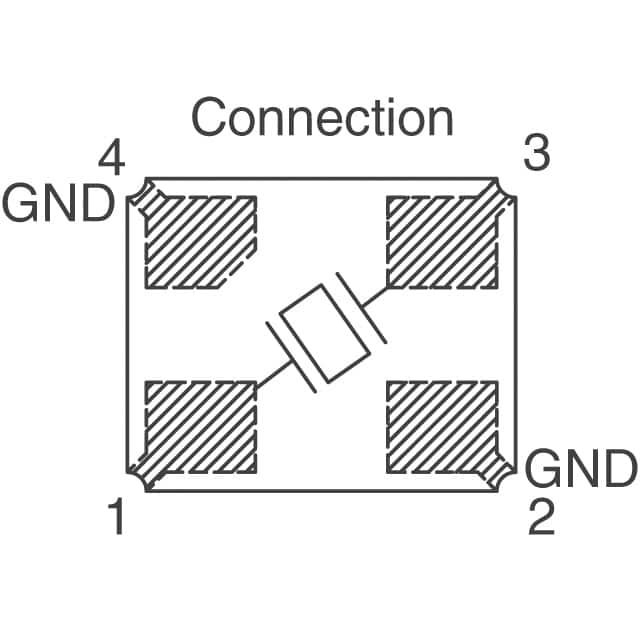

| Package / Case | 4-SMD, No Lead |

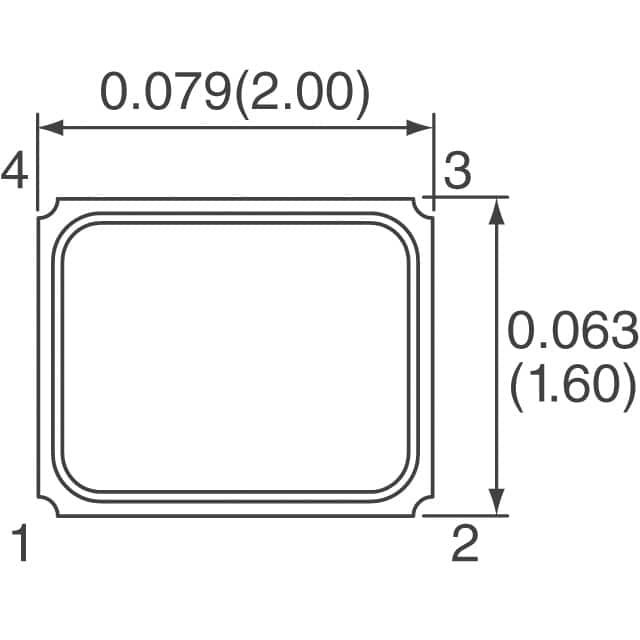

| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Other | |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Load Capacitance | 10pF |
| Mfr | TXC CORPORATION |
| Operating Mode | Fundamental |
| Product Status | Active |
| Ratings | - |
| Series | 8Y |
| Type | MHz Crystal |
