8T39S04I FANOUT BUFFER
All alternatives
View full reportTechnical parameters
Key specs
Max frequency2 GHzMax
Outputs3
Supply voltage2.375 ~ 2.625 V
| Power | |
|---|---|
| Voltage - Supply | 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| AC and DC characteristics | |
| Frequency - Max | 2 GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |

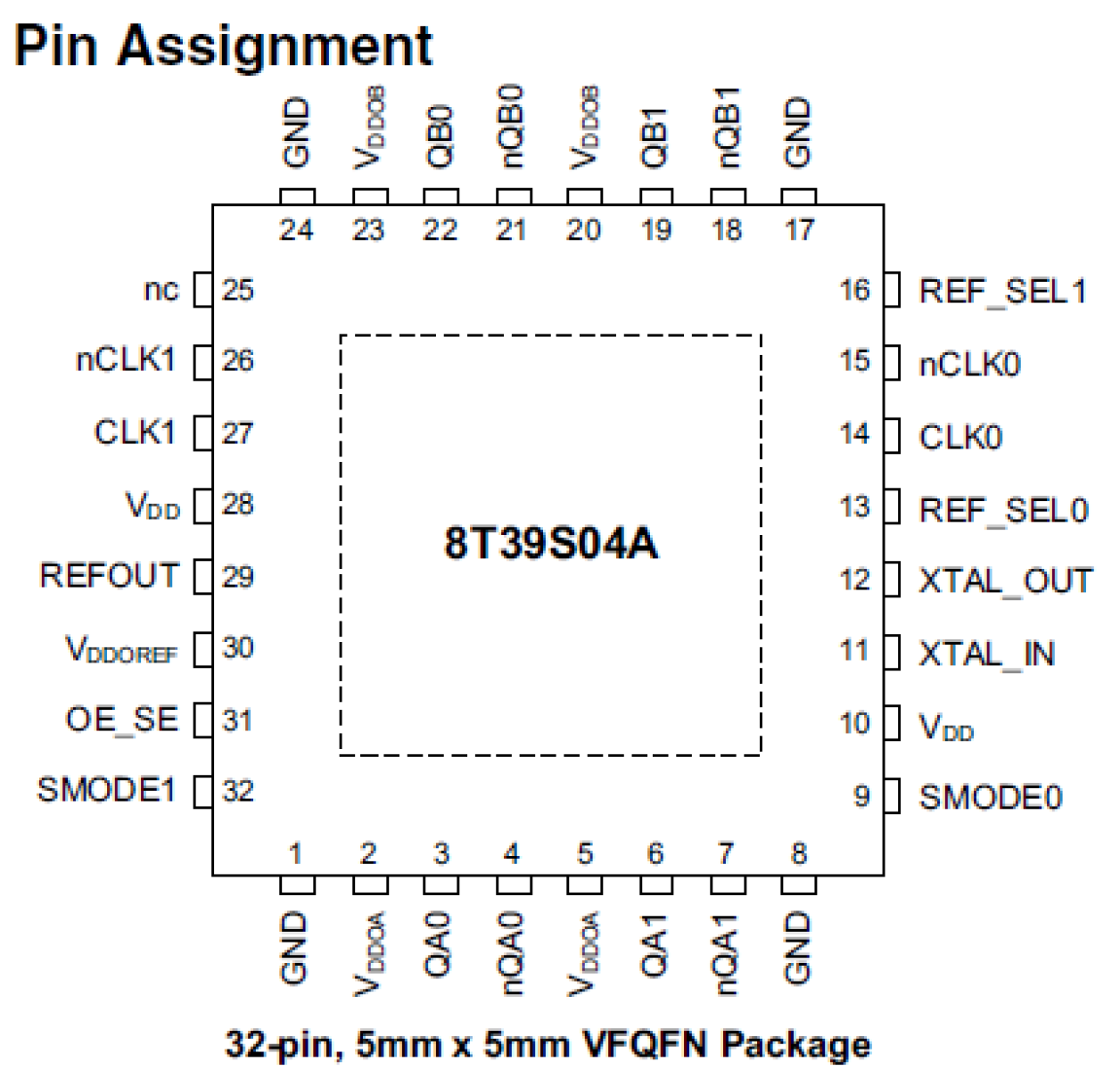

| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-VFQFPN (5x5) |
| Other | |
| Differential - Input:Output | Yes/Yes |
| Input | HCSL, HSTL, LVDS, LVPECL, Crystal |
| Mfr | Renesas Electronics Corporation |
| Number of Circuits | 1 |
| Output | HCSL, LVDS, LVPECL |
| Product Status | Active |
| Ratio - Input:Output | 3:5 |
| Series | - |
| Type | Fanout Buffer (Distribution), Multiplexer |
