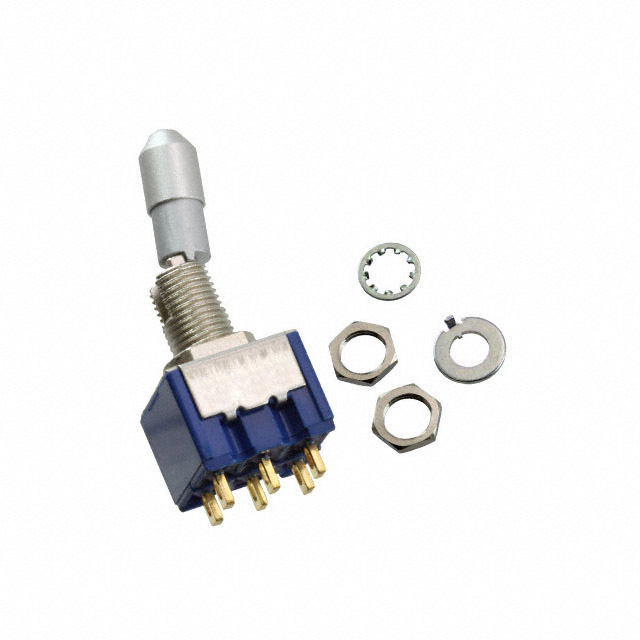

SWITCH TOGGLE DPDT 25MA 20V
All alternatives
View full reportTechnical parameters
Key specs
CircuitDPDT
Switch functionOn-Off-On
Current rating25 mAMax
Voltage rating20 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 25mA (DC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - DC | 20 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -20°C ~ 85°C |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Other | |
| Actuator Length | 16.50mm |
| Actuator Material | - |
| Actuator Type | Locking Lever |
| Base Product Number | 8E2021 |
| Bushing Thread | 1/4-40 |
| Circuit | DPDT |
| Electrical Life | 50,000 Cycles |
| Features | Sealed - Flux Protection |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mfr | Nidec Components Corporation |
| Product Status | Obsolete |
| Series | 8E |
| Switch Function | On-Off-On |
| Termination Style | Solder Lug |
