Song Chuan(松川)China
Mini ISO automotive relay.; SPNC, SPNO, SPDT, DPNO contact configurations.; NO contacts switch 50A resistive load, NC contacts switch 30A resistive load, 100,000 ops., 23°C.
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage24 V
| Power | |
|---|---|
| Coil voltage | DC | 12, 24V |
| Max. Allowable Contact current(A) | 50A |
| Power consumption | DC | 1.6W |
| Other | |
| 1. | 896 | — | Basic series designation |
| 2. | Blank | — | Standard type |
| 3. | Blank | — | Socket terminal |
| 4. | 1AH | — | Single pole normally open, contact material AgSnO |
| 5. | D | — | Dust cover |
| 6. | Blank | — | Standard type |
| 7. | Blank | — | Standard type |
| 8. | Blank | — | Standard type |
| 9. | □ | — | Coil voltage (please refer to the coil rating data for the availability) |
| AC | —— |
| Contact and coil | 500VAC |
| Contact circuits | —— |
| Contact configuration | 1A, 1B, 1C, 2A |
| Contact rating | Resistive load | 896H:50A 14VDC, 20A 28VDC, 896:40A 14VDC |
| Dielectric strength | Open contact | 500VAC |
| Electrical(Min.) | 1×105 |
| Life expectancy | Mechanical(Min.) | 1×107 |

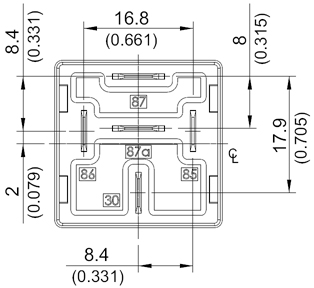

| Outline (L×W×H) mm | 25.8 × 25.8 × 25 |
