WeidmüllerGermany

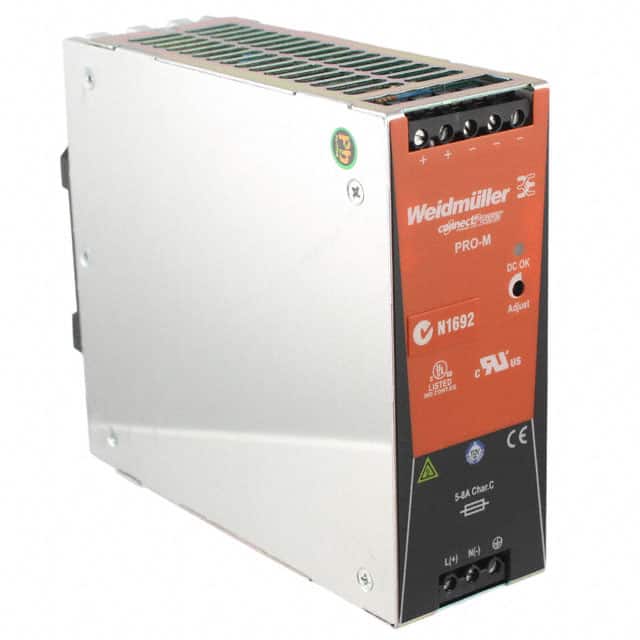

AC/DC CONVERTER 24V 180W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| AC Voltage - Input | 85 ~ 264 VAC |
| Current - Output (Max) | 7.5A |
| Power (Watts) | 180W |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Operating Temperature | -25°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 4.92" L x 1.97" W x 5.12" H (125.0mm x 50.0mm x 130.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cULus, cURus, GOST, TUV |
| Efficiency | 91% |
| Features | Adjustable Output, IP20, Load Sharing, Universal Input |
| Input Type | AC |
| Mfr | Weidmüller |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | Connect Power Pro-M (180W) |
