Belden Inc.United States

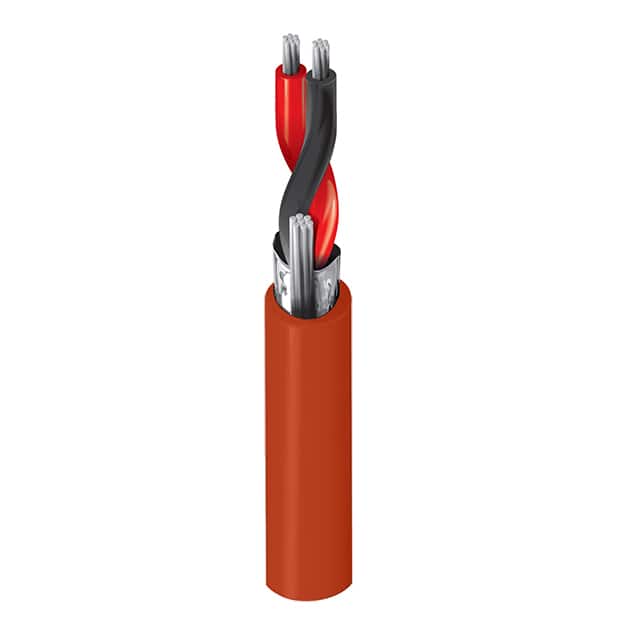

CABLE 2 COND 18AWG SHLD 100'
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating Temperature | -70°C~200°C |
| Package | Spool |
| Other | |
| Base Product Number | 88760 |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 19/30 |
| Features | Drain Wire |
| Jacket Color | Red |
| Jacket (Insulation) Diameter | 0.143" (3.63mm) |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP), Plenum |
| Jacket (Insulation) Thickness | 0.0140" (0.356mm) |
| Length | 100.0' (30.5m) |
| Mfr | Belden Inc. |
| Number of Conductors | 2 (1 Pair Twisted) |
| Product Status | Active |
| Ratings | - |
| Series | Classics |
| Shield Coverage | 100% |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | - |
| Wire Gauge | 18 AWG |
Documents
No documents are linked to this part yet.
