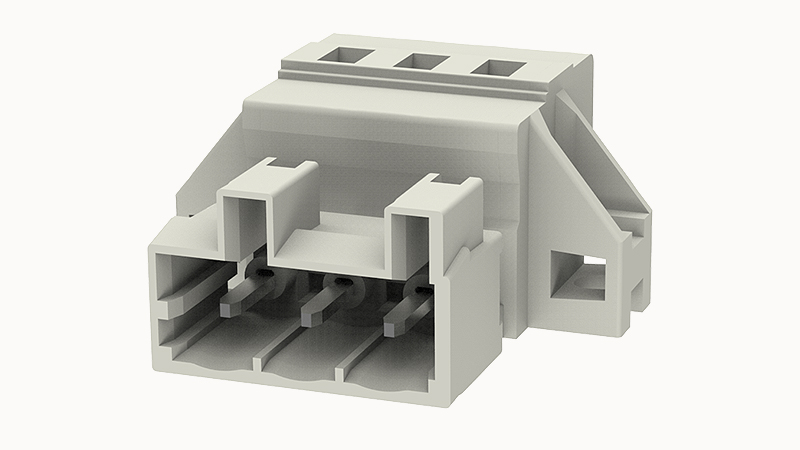

View full reportTechnical parameters
Key specs
Positions3
Rows1
Pitch5 mm
Current rating15 AMax
| Power | |
|---|---|
| Overvoltage category/Degree of pollution | III/3 / III/2 / II/2 |
| Rated current | 20A |
| Rated current (B) | 15A |
| Rated current (D) | 10A |
| Rated surge voltage(III/2) | 4KV |
| Rated voltage | 320V |
| Rated voltage (B) | 300V |
| Rated voltage (D) | 300V |
| Rated voltage(III/2) | 320V |
| Environment and package | |
| Ambient temperature (operation) | -40℃~105℃(depending on derating curve) |
| Other | |
| 8EDGKRMB-5.0-03P-11-01A&Z(H).stp | Download |
| 8EDGKRMB-5.0-XXP-11-01A&Z(H).dxf | Download |
| 8EDGKRMB-5.0-XXP-11-01A&Z(H).pdf | Download |
| AWG | 22~14AWG |
| Bridge | DG018-5.0 |
| Coding strip | / |
| Conductor cross section flexible | 0.2~2.5mm² |
| Conductor cross section solid | 0.2~2.5mm² |
| Connection direction | 0° |
| Connection method | spring-cage connection |
| Contact material | copper |
| Contact point metal surface | tin-plated |
| Contact zone metal surface | tin-plated |
| Cross section | / / 0.2~2.5 / / |
| Environmental items | Compliant with REACH/RoHS |
| Flammability rating | UL94V-0 |
| Insulating material group | Ⅰ |
| Insulation Materials | PA66 |
| Marking strip | / |
| Minimum order quantity | 30 |
| Number of potentials | 3 |
| Number of rows | 1 |
| Operating tool | DG010 |
| Order number | 10020001528 |
| Others | / |
| Packing unit | 355 |
| Pin arrangement | Single row in a straight line |
| Pitch | 5mm |
| Pluggable or not | Yes |
| Products weight (without packaging) | 6 |
| Screwdriver | / |
| Strip length | 9mm |
| Test Specification | IEC61984/ UL1059 |
| Type of installation | panel |
| Use group | B / C / D |
