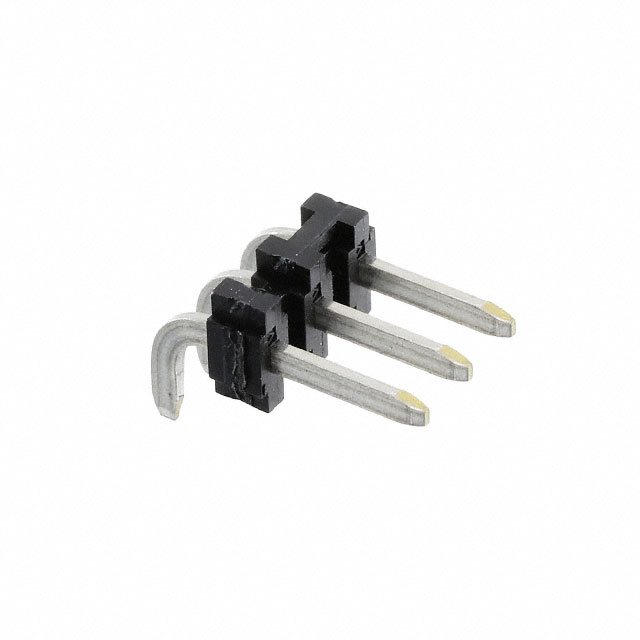

CONN HEADER R/A 3POS 3.96MM
All alternatives
View full reportTechnical parameters
Key specs
Positions3
Rows1
Pitch3.96 mm
GenderMale
Current rating5 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 5A |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.250" (6.35mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -65°C ~ 105°C |
| Package | Bulk |
| Other | |
| Applications | - |
| Base Product Number | 87655 |
| Connector Type | Header |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Length - Mating | 0.345" (8.76mm) |
| Contact Length - Post | 0.150" (3.81mm) |
| Contact Material | Brass |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | - |
| Pitch - Mating | 0.156" (3.96mm) |
| Product Status | Obsolete |
| Row Spacing - Mating | - |
| Series | AMPMODU Mod I |
| Shrouding | Unshrouded |
| Style | Board to Board or Cable |
| Termination | Solder |
