CrouzetFrance
COUNTER LCD 6 CHAR PANEL MOUNT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | None Required (Battery Included) |
| Environment and package | |
| Display Characters - Height | 0.275" (7.00mm) |
| Mounting Type | Panel Mount |
| Operating Temperature | 0°C~55°C |
| Package | Bulk |

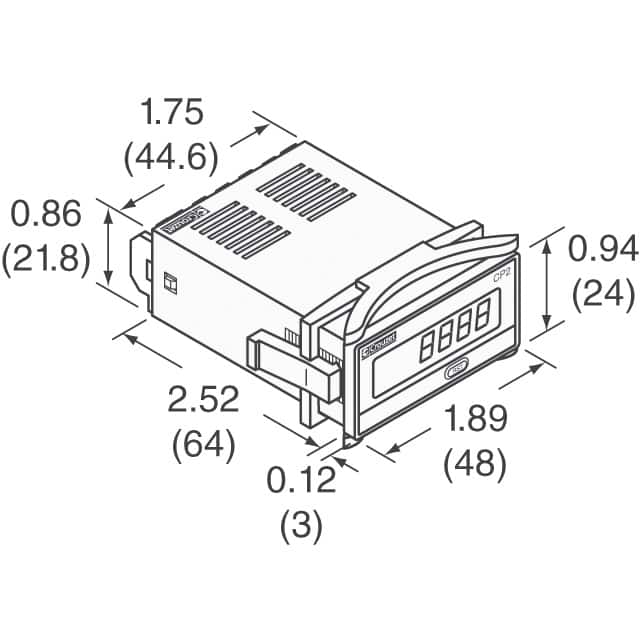

| Panel Cutout Dimensions | Rectangular - 44.80mm x 22.00mm |
| Other | |
| Count Rate | - |
| Display Type | LCD - Black Characters |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Input Type | No Voltage |
| Mfr | Crouzet |
| Number of Characters Per Row | 6 |
| Operating Mode | Up |
| Output Type | - |
| Product Status | Obsolete |
| Reset | External, Front Panel |
| Series | CP2 2108 |
| Termination Style | Screw Terminal |
| Time Format | 99999.9hrs, min, sec; 9999hrs59min59sec |
| Type | Time Counter (Hour Meter) |
| Weight | 0.133 lb (60.33 g) |
