Würth ElektronikGermany

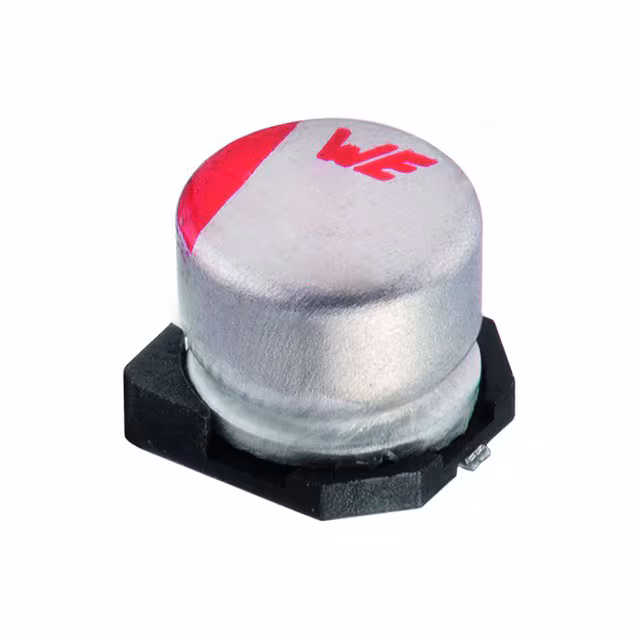

CAP ALUM 3.3UF 20% 35V SMD
All alternatives
View full reportTechnical parameters
Key specs
Capacitance3.3 µF
Rated voltage35 V
Tolerance20 %
Lifetime2 kh105°C
| Power | |
|---|---|
| Voltage - Rated | 35 V |
| AC and DC characteristics | |
| Impedance | 2.8 Ohms |
| Ripple Current @ High Frequency | 80 mA @ 100 kHz |
| Ripple Current @ Low Frequency | 47.2 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~105°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Other | |
| Applications | General Purpose |
| Capacitance | 3.3 µF |
| ESR (Equivalent Series Resistance) | - |
| Lead Spacing | - |
| Mfr | Würth Elektronik |
| Polarization | Polar |
| Product Status | Active |
| Ratings | - |
| Series | WCAP-ASLI |
| Tolerance | ±20% |
