86225CY

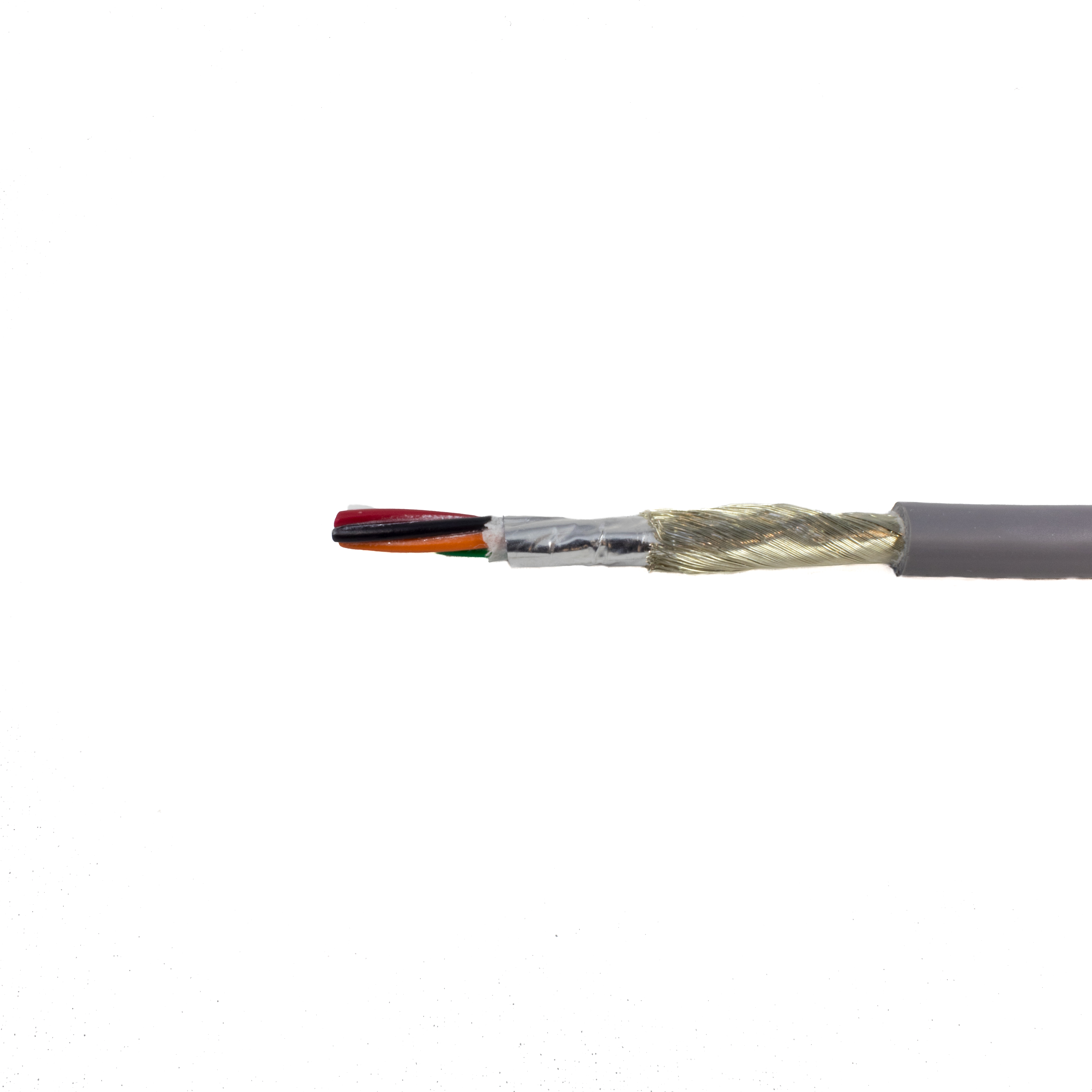

ActiveXtra-Guard Flex 24 AWG 25 Conductor is a long-lasting flexible cable designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| Environment and package | |
| 1) Temperature Range | -10 to 105°C(static), +5 to 105°C (dynamic) |
| Other | |
| (1) Color Code | Alpha Wire Color Code D |
| 1) Component 1 | 25 X 1 COND |
| 1) UL | a) Component 1 |
| 2) Bend Radius | 8X Cable Diameter(static), 8X Cable Diameter(dynamic) |
| 2) Cable Assembly | 25 Components Cabled |
| 2) Capacitance | 31 pF/ft @1 kHz, Nominal Conductor to Conductor |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) Ground Capacitance | 56 pF/ft @1 kHz, Nominal |
| 3) Other | Oil Resistant |
| 3) Pull Tension | 86 Lbs, Maximum |
| 3) Shield | Flex Alum/Mylar Tape, 20% Overlap, Min. |
| 4) CE | EU Low Voltage Directive 2014/35/EU |
| 4) Inductance | 0.19 μH/ft, Nominal |
| 4) Sunlight Resistance | Yes |
| 5) Conductor DCR | 29 Ω/1000ft @20°C, Nominal |
| 6) OA Shield DCR | 3 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 18 x 14.25 x 8 Continuous length |
| a) Color(s) | SLATE |
| a) Foil Direction | Foil Facing Out |
| a) Twists | 3.7 Twists/foot (min) |
| b) 500 FT | 18 x 9 x 8 Continuous length |
| b) Drain Wire | 26 (7/34) AWG Tinned Copper |
| b) Jacket Separator | Tissue Tape, 20% Overlap, Min. |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| c) 100 FT | 12 x 5.94 x 5 Continuous length |
| c) Core Wrap | Nonwoven Polyester Tape, 20% Overlap, Min. |
| CM | 105°C |
| Color | BLACK |
| Cond | 1 |
| c) Print | ALPHA WIRE-* P/N 86225CY 25C 24 AWG XTRAGUARD(R) CONTINUOUS FLEX DATA CABLE (UL) 105C TYPE CM SUN RES OR C(UL) CMG OR AWM 2661 105C 300V --- LL49185 CSA AWM I/II A/B FT4 105C 300V CE ROHS OIL RESISTANT (SEQ FOOTAGE) * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |
| c) Single Serve | Tinned Copper,90% Coverage, Nom. |
| C(UL) TYPE CMG | 105°C |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
