Alpha WireUnited States

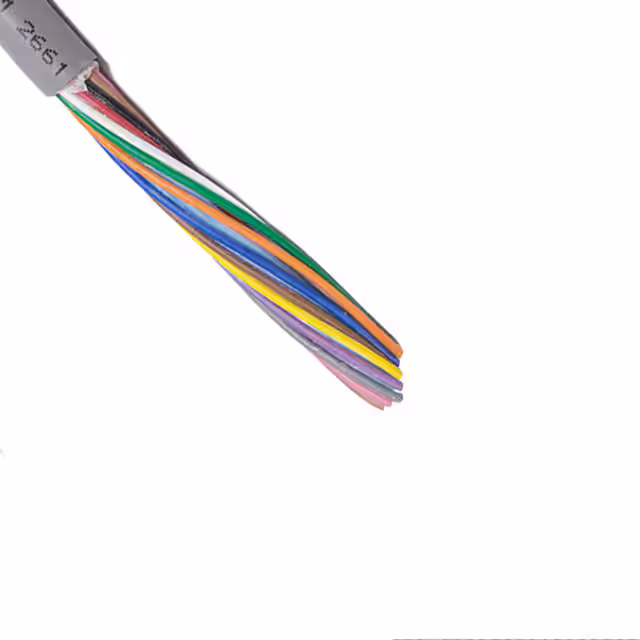

20 AWG 7C UNSHIELDED 10'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | - |
| Package | Spool |
| Other | |
| Base Product Number | 862007 |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 19/32 |
| Features | Oil Resistant |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.293" (7.44mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0430" (1.092mm) |
| Length | 10.00' (3.05m) |
| Mfr | Alpha Wire |
| Number of Conductors | 7 |
| Product Status | Active |
| Ratings | UL Style 2661 |
| Series | Xtra-Guard® Flex |
| Shield Coverage | - |
| Shield Material | - |
| Shield Type | - |
| Usage | - |
| Wire Gauge | 20 AWG |
