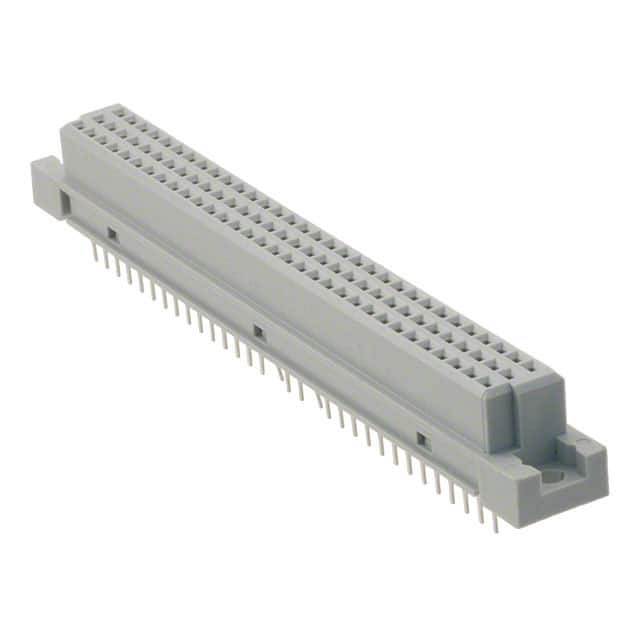

86093968114755V1LF
AmphenolUnited States

86093968114755V1LF

ActiveDIN 41612

CONN DIN RCPT 96POS PCB GOLD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)1.5A
Environment and package
Mounting TypeThrough Hole
Operating Temperature-55°C~125°C
PackageTray
Other
Base Product Number8609396811
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish Thickness-
Features-
Level, Class2
Material Flammability RatingUL94 V-0
Material - InsulationPolyester Thermoplastic, Glass Filled
MfrAmphenol ICC (FCI)
Number of Positions96
Number of Positions LoadedAll
Number of Rows3
Pitch0.100" (2.54mm)
Product StatusActive
Series8609
StyleC
TerminationSolder

Documents

No documents are linked to this part yet.
