Belden Inc.United States

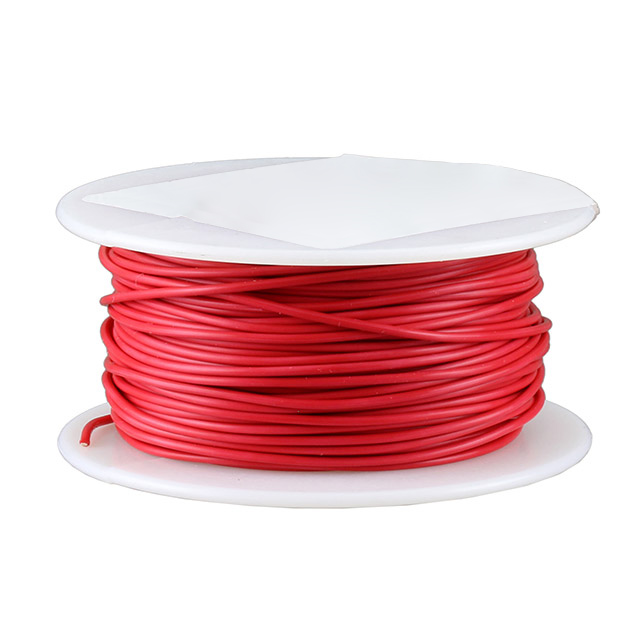

HOOK-UP STRND 22AWG RED
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 1000V |
| Environment and package | |
| Grade | - |
| Operating Temperature | -40°C ~ 80°C |
| Package | Spool |
| Qualification | MIL-W-76C Type MW |
| Other | |
| Base Product Number | 8524 |
| Cable Type | Hook-Up |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7/30 |
| Features | Chemical Resistant |
| Jacket Color | Red |
| Jacket (Insulation) Diameter | 0.064" (1.63mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.017" (0.43mm) |
| Length | 100.0' (30.5m) |
| Mfr | Belden Inc. |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Wire Gauge | 22 AWG |
Documents
No documents are linked to this part yet.
