APEM Inc.France

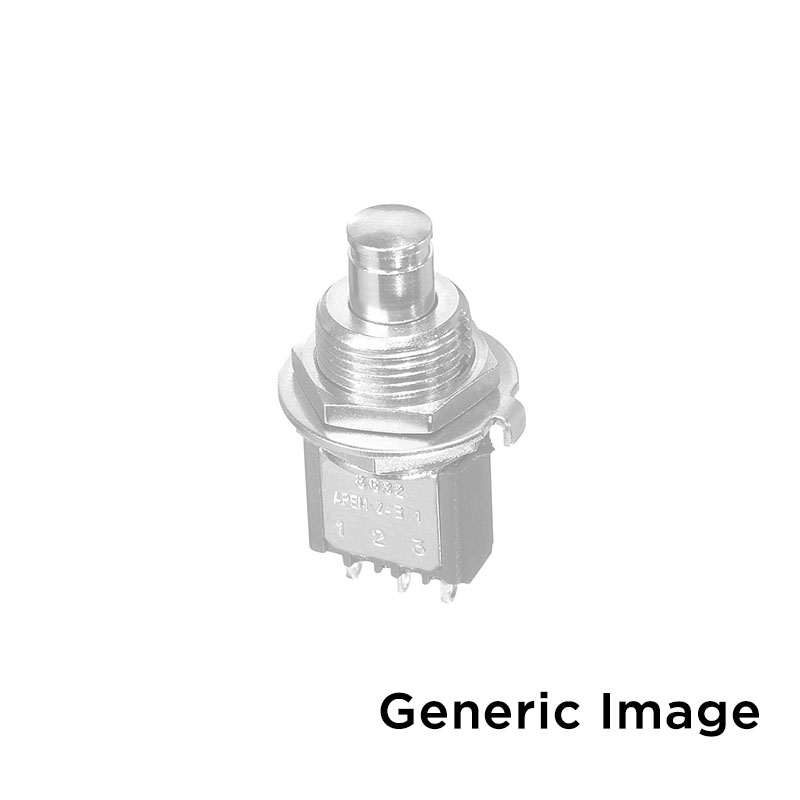

The 8442AB-6X748ULU480 Panel Switch offers double pole configuration for reliable control of lights and motors, ensuring stability and performance in electrical systems.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Max. current/voltage rating with resistive load | - silver contacts : 4 A 30 VDC- gold plated contacts : 0.4 VA max. 20 VAC or DC |
| Environment and package | |
| Operating temperature | -40 °C to +85 °C |
| Other | |
| Caps | 10mm (0.393in) Standard |
| Contact Materials | Silver |
| Dielectric strength | - 1,000 Vrms 50 Hz min. between terminals- 2,000 Vrms 50 Hz min. between terminals and frame |
| Electrical Functions | ON |
| Electrical life | 30,000 cycles at full load |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Number Of Poles | Double Pole |
| Plungers | Height 7mm (0.275in) |
| Sealing | Epoxy Sealed Terminals |
| Special Options | Snap-in Mounting |
| Terminals | Solder Lug or Straight PC |
| Terminals And Bushing | Straight PC or Right-Angle Terminals |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut |
| Total travel | 2.70 mm (.106) |
