ebm-papst Inc.Germany

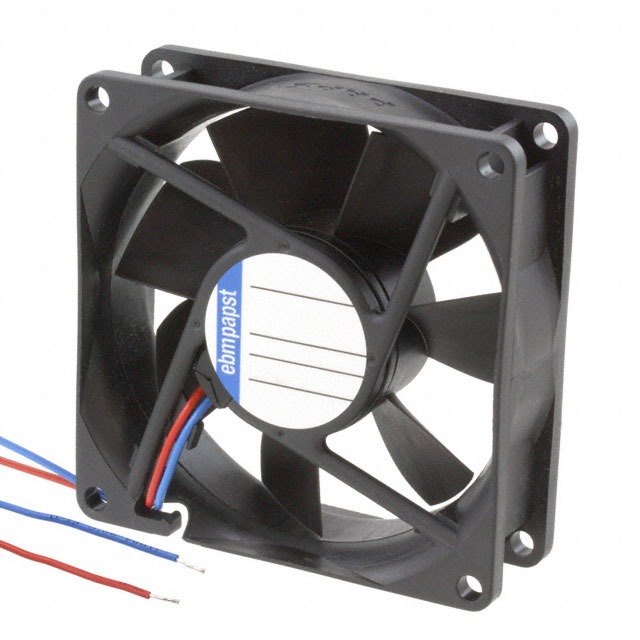

FAN AXIAL 80X25.4MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 2 W |
| Voltage Range | 8 ~ 15VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 32.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Package | Bulk |
| Size / Dimension | Square - 80mm L x 80mm H |
| Other | |
| Air Flow | 40.6 CFM (1.14m³/min) |
| Approval Agency | UL |
| Base Product Number | 8412N |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 3100 RPM |
| Series | 8400NU |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.209 lb (94.8 g) |
| Width | 25.40mm |
