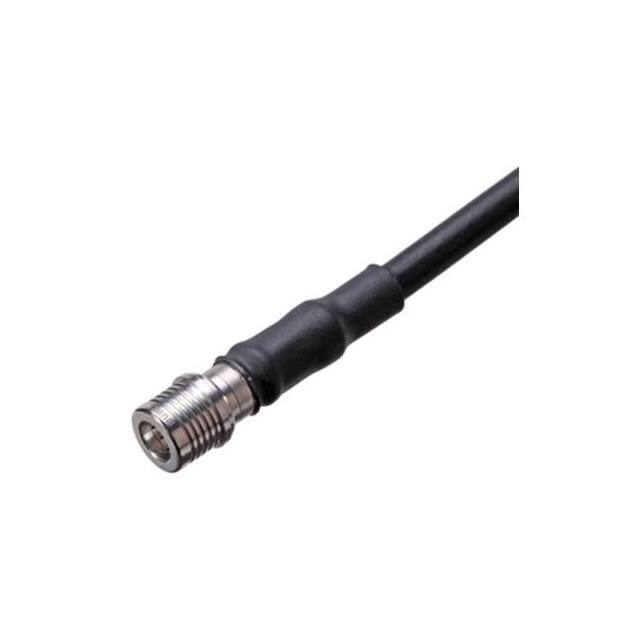

84075865
Huber+Suhner, Inc.Switzerland

84075865

ActiveCoaxial Connector (RF) Assemblies

11_QMA-W50-4-3/133_NE

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleQMA
GenderMale
Impedance50 Ω
Max frequency18 GHzMax
Power
Voltage Rating480 V
AC and DC characteristics
Frequency - Max18 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-40°C~105°C
PackageBulk
Other
Base Product Number11_QMA-W50
Body FinishWhite Bronze
Body MaterialBrass
Cable GroupLMR-240
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleQMA
Connector TypePlug, Male Pin
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypePush-Pull
Features-
Housing ColorSilver
Includes-
Ingress Protection-
Insertion Loss-
Mating Cycles100
MfrHuber+Suhner, Inc.
Number of Ports1
Product StatusActive
Series-
Shield TerminationCrimp

Documents

No documents are linked to this part yet.
