Song Chuan(松川)China
Miniature 12A 125VAC, 10A 250VAC/30VDC PCB Relay.; UL/CUL, TUV, VDE approved.; 450mW and 200mW coil are available.
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage3 ~ 24 V
| Power | |
|---|---|
| Coil voltage | DC | 3 ~ 24V |
| Max. Allowable Contact current(A) | 10A |
| Power consumption | DC | 0.45W, 0.2W |
| Other | |
| 1. | 835 | — | Basic series designation |
| 2. | Blank | — | Standard type |
| 3. | Blank | — | Standard type |
| 4. | 1A | — | Single pole normally open |
| 5. | Blank | — | Standard type |
| 6. | C | — | Flux tight |
| 7. | Blank | — | Standard type |
| 8. | □ | — | Coil voltage (please refer to the coil rating data for the availability) |
| AC | —— |
| Contact and coil | 2500VAC |
| Contact circuits | —— |
| Contact configuration | 1A |
| Contact rating | Resistive load | 835: 10A 240VAC ; 835L: 8A 240VAC ; 835NL: 5A 240VAC |
| Dielectric strength | Open contact | 1000VAC |
| Electrical(Min.) | 1×105 |
| Life expectancy | Mechanical(Min.) | 1×107 |

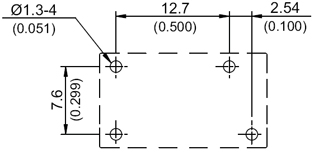

| Outline (L×W×H) mm | 18.8 × 10.6 × 15.6 |
