833702T00000
Comair RotronUnited States

833702T00000

ObsoleteHeat Sinks

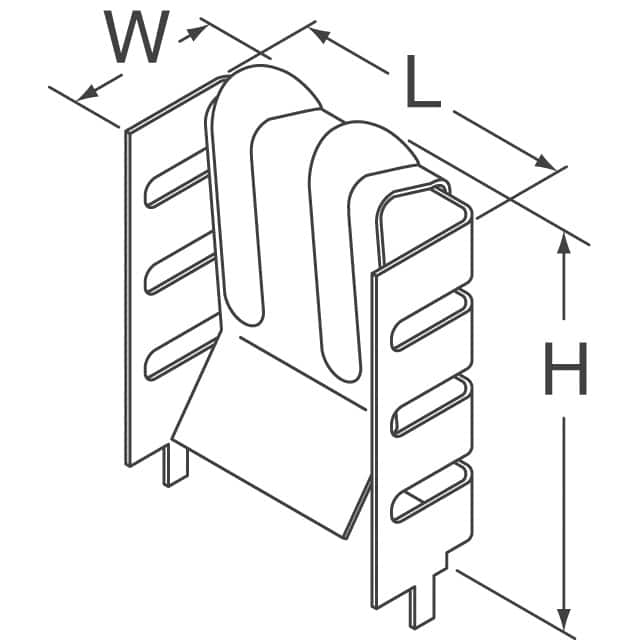

HEATSINK STAMP 9.5X22X28MM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Environment and package
Fin Height0.375" (9.52mm)
PackageBulk
Package CooledTO-220
Power Dissipation @ Temperature Rise1.5W@40°C
Thermal Resistance @ Forced Air Flow8.00°C/W @ 400 LFM
Thermal Resistance @ Natural-
Other
Attachment MethodClip and PC Pin
Diameter-
Length1.100" (27.94mm)
MaterialCopper
Material FinishTin
MfrComair Rotron
Product StatusObsolete
Series-
ShapeRectangular, Fins
TypeBoard Level, Vertical
Width0.866" (22.00mm)

Documents

No documents are linked to this part yet.
