Belden Inc.United States

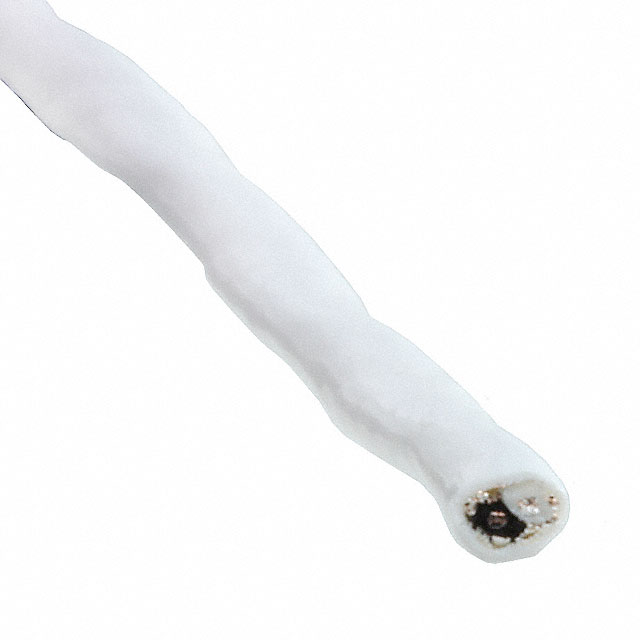

CABLE 2CON 16AWG WHT SHLD 100'
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating Temperature | -65°C ~ 200°C |
| Package | Spool |
| Other | |
| Base Product Number | 83322E |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | 19/29 |
| Features | - |
| Jacket Color | White |
| Jacket (Insulation) Diameter | 0.197" (5.00mm) |
| Jacket (Insulation) Material | Tetrafluoroethylene (TFE) |
| Jacket (Insulation) Thickness | 0.0110" (0.279mm) |
| Length | 100.0' (30.5m) |
| Mfr | Belden Inc. |
| Number of Conductors | 2 |
| Product Status | Active |
| Ratings | - |
| Series | Classics |
| Shield Coverage | 85% |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| Usage | - |
| Wire Gauge | 16 AWG |
