Comair RotronUnited States

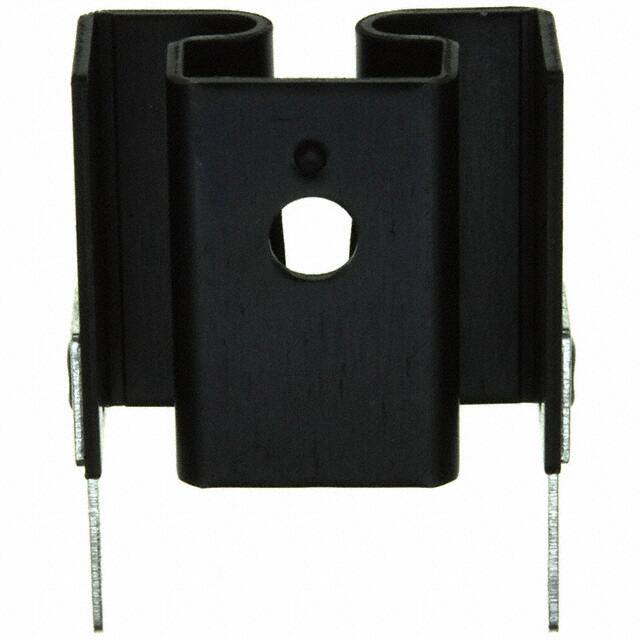

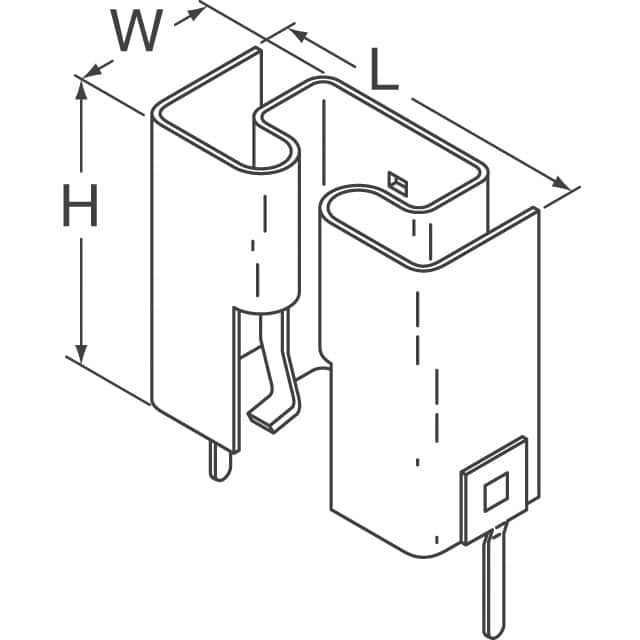

HEATSINK STAMP 10X21.2X19MM
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 0.394" (10.00mm) |
| Package | Bulk |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 3.0W@60°C |
| Thermal Resistance @ Forced Air Flow | 12.00°C/W @ 200 LFM |
| Thermal Resistance @ Natural | - |
| Other | |
| Attachment Method | Bolt On and PC Pin |
| Diameter | - |
| Length | 0.750" (19.05mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Comair Rotron |
| Product Status | Obsolete |
| Series | - |
| Shape | Rectangular |
| Type | Board Level, Vertical |
| Width | 0.835" (21.21mm) |
