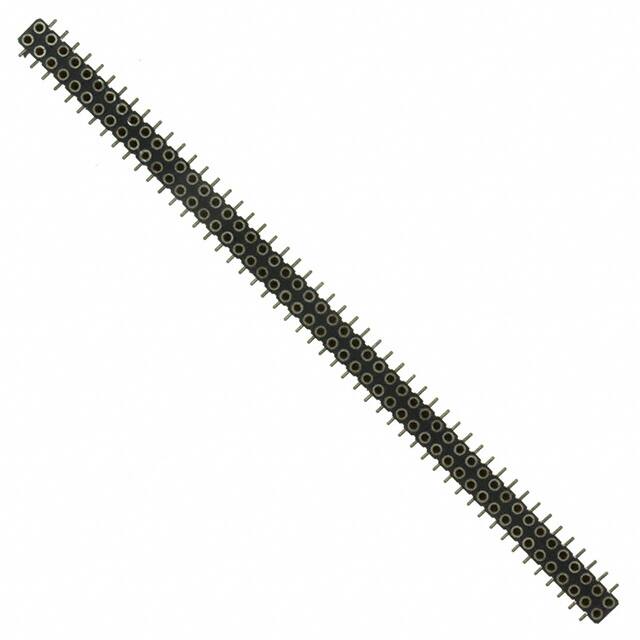

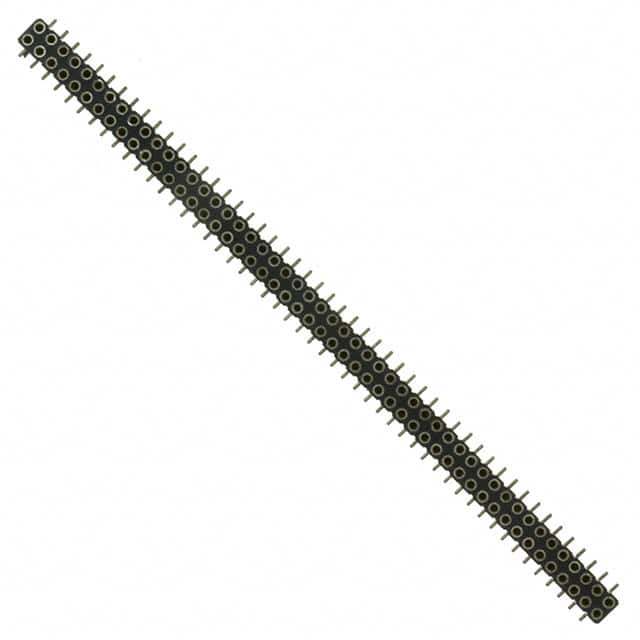

833-93-100-30-001000
Mill-Max Manufacturing Corp.United States

833-93-100-30-001000

ActiveHeaders, Receptacles, Female Sockets

CONN RCPT 100POS 0.079 GOLD SMD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Positions100
Rows2
Pitch2 mm
GenderFemale
Current rating3 AMax
Power
Current Rating (Amps)3A
Voltage Rating-
Environment and package

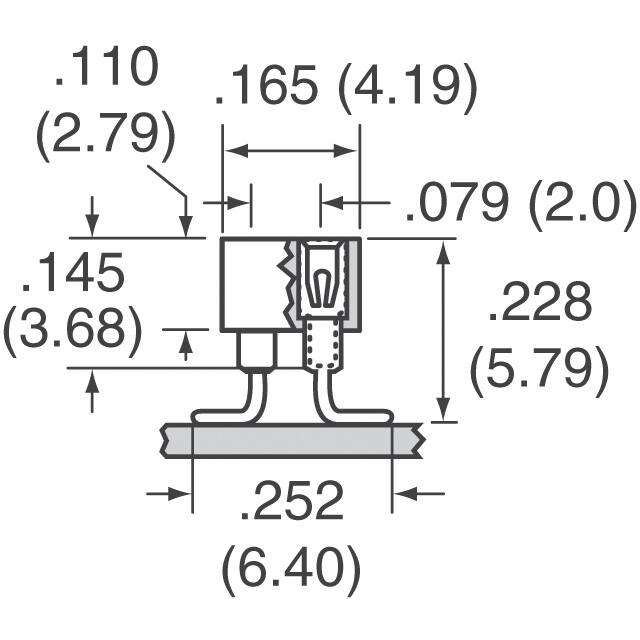

Insulation Height0.228" (5.80mm)
Mated Stacking Heights-
Mounting TypeSurface Mount
Operating Temperature-55°C~125°C
PackageTube
Other
Applications-
Base Product Number833-93
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thickness - Mating30.0µin (0.76µm)
Contact Finish Thickness - Post200.0µin (5.08µm)
Contact Length - Post-
Contact MaterialBeryllium Copper
Contact ShapeCircular
Contact TypeFemale Socket
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation MaterialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability RatingUL94 V-0
MfrMill-Max Manufacturing Corp.
Number of Positions100
Number of Positions LoadedAll
Number of Rows2
Pitch - Mating0.079" (2.00mm)
Product StatusActive
Row Spacing - Mating0.079" (2.00mm)
Series833
StyleBoard to Board
TerminationSolder
