CrouzetFrance

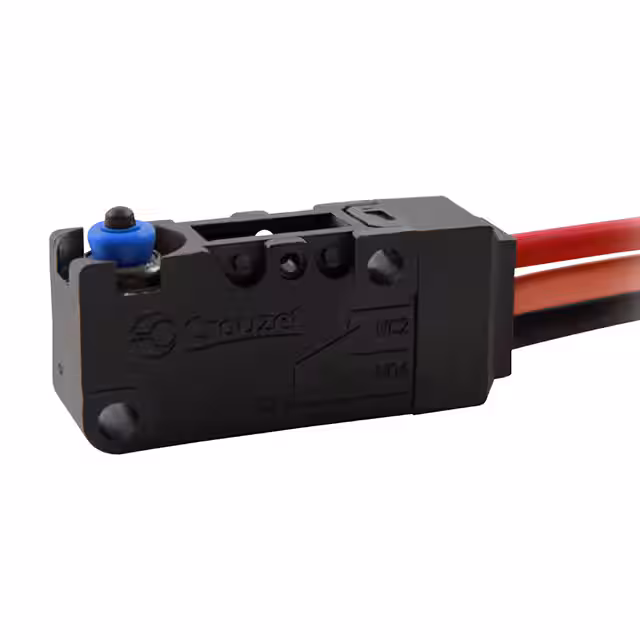

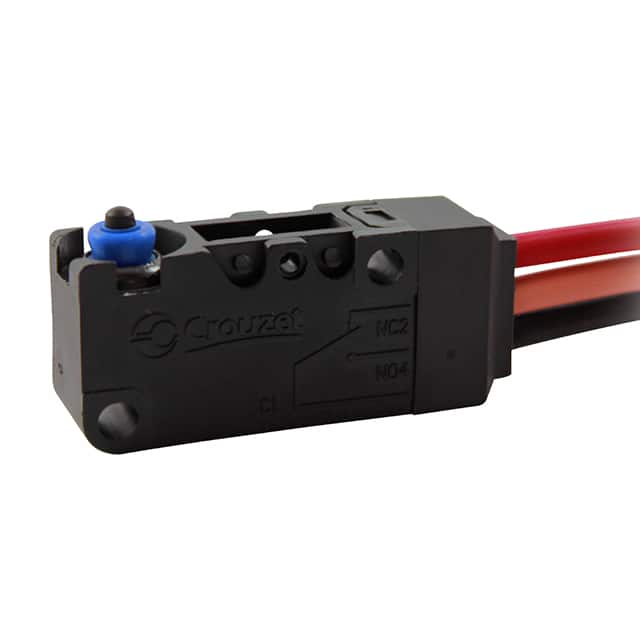

SWITCH SNAP ACTION SPDT 10A 250V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 10A (AC) |
| Voltage Rating - AC | 250 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Other | |
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Differential Travel | 0.020" (0.5mm) |
| Electrical Life | 50,000 Cycles |
| Features | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1,000,000 Cycles |
| Mfr | Crouzet |
| Operating Force | 459gf |
| Operating Position | 0.579" (14.7mm) |
| Overtravel | 0.040" (1.0mm) |
| Pretravel | - |
| Product Status | Active |
| Release Force | 82gf |
| Series | V3DS |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
