AmphenolUnited States
CONN UHF RCPT STR SOLDER
All alternatives
View full reportTechnical parameters
Key specs
GenderFemale
Max frequency300 MHzMax
| Power | |
|---|---|
| Voltage Rating | 500 V |
| AC and DC characteristics | |
| Frequency - Max | 300 MHz |
| Impedance | Non-Constant |
| Environment and package | |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount |
| Operating Temperature | -65°C~165°C |
| Package | Bulk |
| Other | |
| Base Product Number | 83-8 |
| Body Finish | Nickel |
| Body Material | Zinc Die Cast |
| Cable Group | - |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | UHF |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |

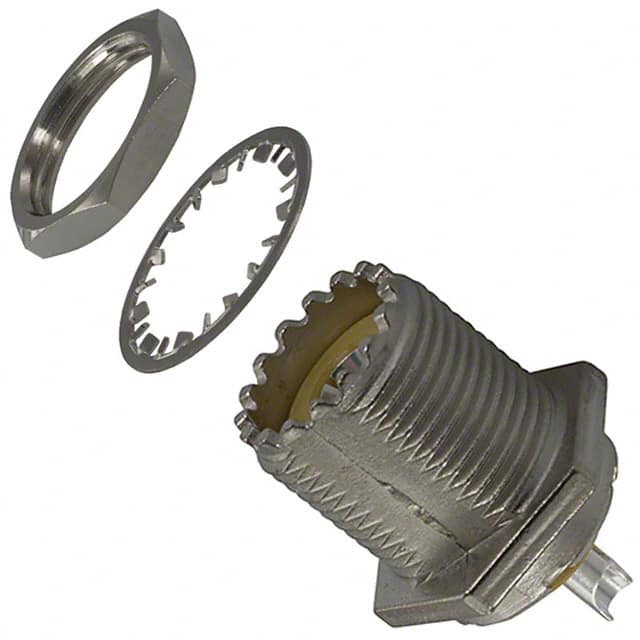

| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
