CrouzetFrance

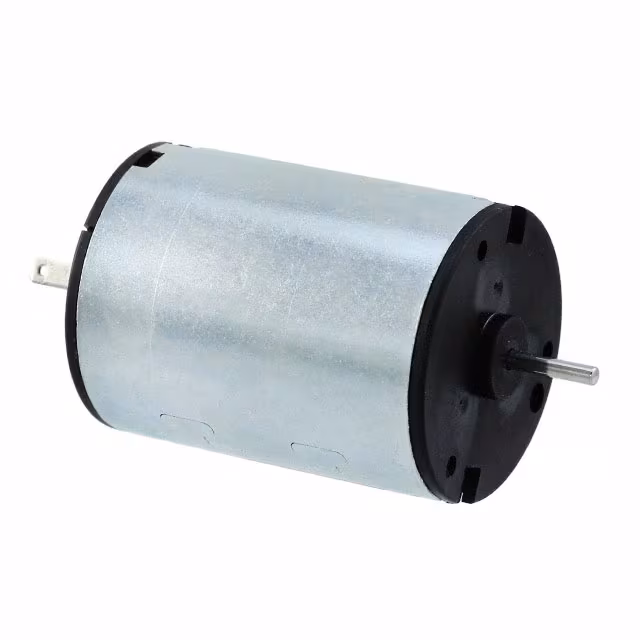

STANDARD MOTOR 3700 RPM 24V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Rated | 1W |
| Voltage - Rated | 24VDC |
| Environment and package | |
| Mounting Hole Spacing | - |
| Operating Temperature | - |
| Package | Bulk |
| Size / Dimension | Round - 1.268" Dia (32.20mm) |
| Other | |
| Approval Agency | - |
| Diameter - Shaft | 0.079" (2.00mm) |
| Encoder Type | - |
| Features | Noise Filter |
| Function | Standard |
| Gear Reduction Ratio | - |
| Length - Shaft and Bearing | 0.472" (12.00mm) |
| Mfr | Crouzet |
| Motor Type | Brushed |
| Product Status | Active |
| RPM | 3700 RPM |
| Series | 82840 |
| Termination Style | Solder Tab |
| Torque - Max Momentary (oz-in / mNm) | - |
| Torque - Rated (oz-in / mNm) | 0.311 / 2.2 |
| Type | DC Motor |
| Weight | - |
