Würth ElektronikGermany

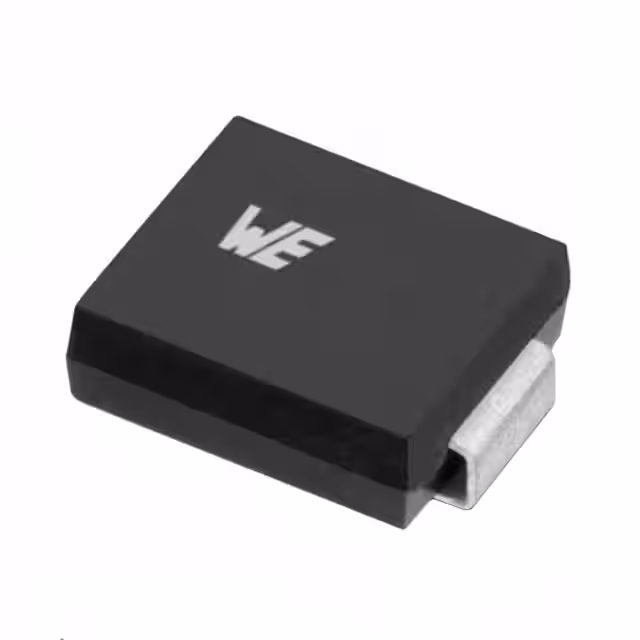

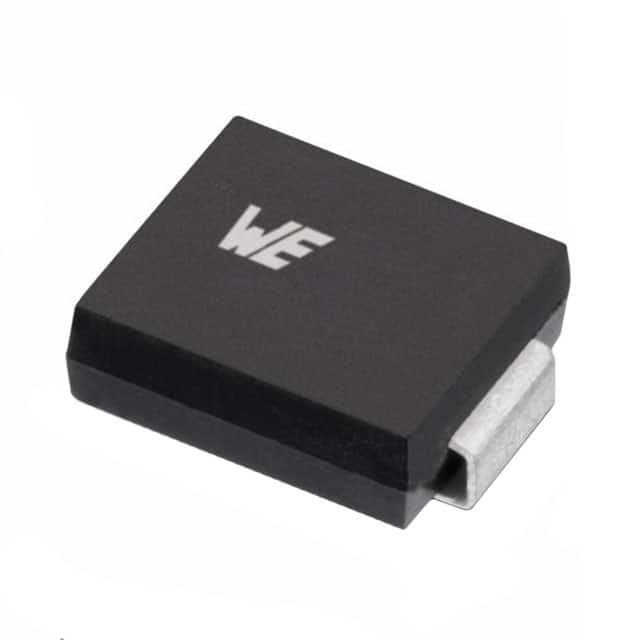

TVS DIODE 64VWM 103VC DO214AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage64 V
Breakdown voltage74.85 V
Clamping voltage103 VMax
Peak pulse power1.5 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 14.6A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 74.85V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 103V |
| Voltage - Reverse Standoff (Typ) | 64V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB |
| Other | |
| Applications | General Purpose |
| Mfr | Würth Elektronik |
| Product Status | Active |
| Series | WE-TVSP |
| Type | Zener |
