Würth ElektronikGermany

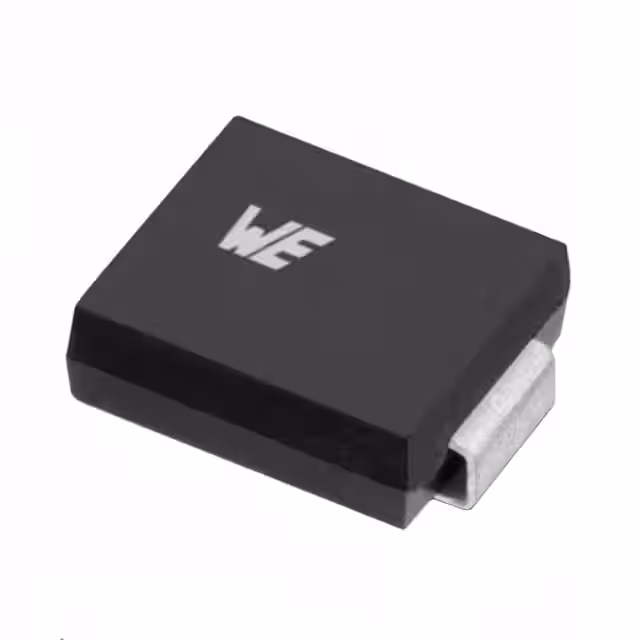

TVS DIODE 43VWM 69.4VC DO214AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage43 V
Breakdown voltage50.3 V
Clamping voltage69.4 VMax
Peak pulse power400 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 5.8A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 50.3V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 69.4V |
| Voltage - Reverse Standoff (Typ) | 43V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC |
| Other | |
| Applications | General Purpose |
| Mfr | Würth Elektronik |
| Product Status | Active |
| Series | WE-TVSP |
| Type | Zener |
