Bourns Inc.United States

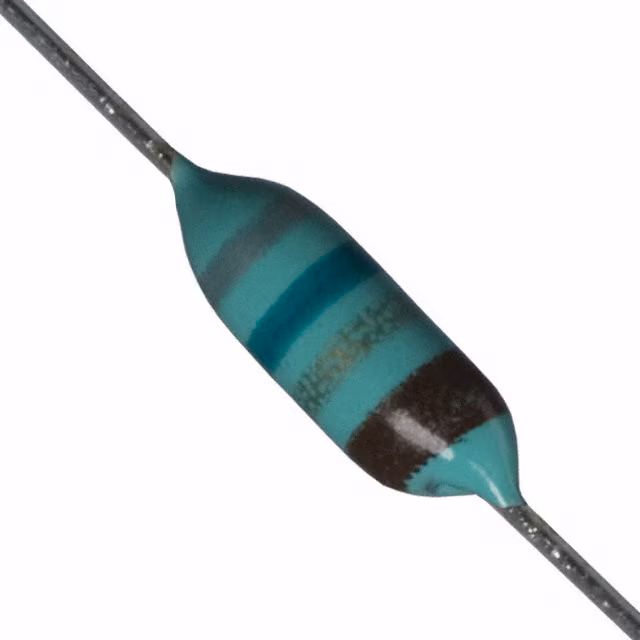

FIXED IND 1.5UH 745MA 220MOHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance1.5 µH
Rated current745 mAMax
DC resistance220 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 745 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 140MHz |
| Inductance Frequency - Test | 7.9 MHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Axial |
| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 8230 |
| DC Resistance (DCR) | 220mOhm Max |
| Inductance | 1.5 µH |
| Material - Core | Ferrite |
| Mfr | Bourns Inc. |
| Product Status | Obsolete |
| Q @ Freq | 28 @ 7.9MHz |
| Ratings | - |
| Series | 8230 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Drum Core, Wirewound |
