Bourns Inc.United States
FIXED IND 560NH 495MA 500MOHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance560 nH
Rated current495 mAMax
DC resistance500 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 495 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 300MHz |
| Inductance Frequency - Test | 25 MHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Axial |

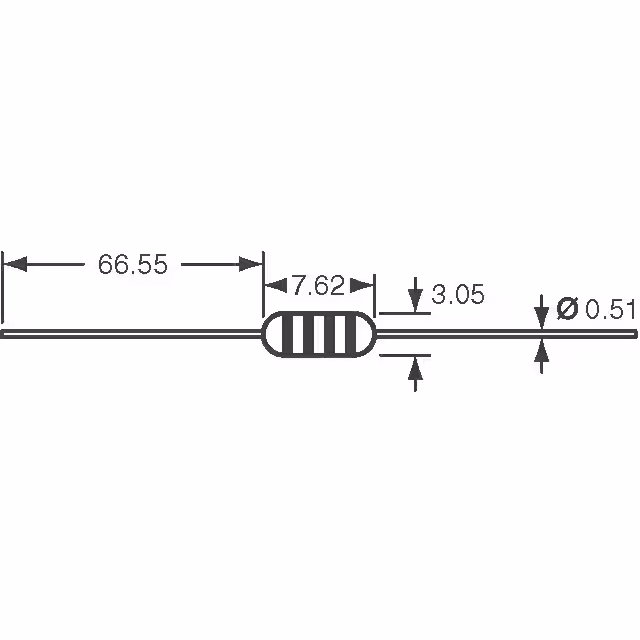

| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 8230 |
| DC Resistance (DCR) | 500mOhm Max |
| Inductance | 560 nH |
| Material - Core | Phenolic |
| Mfr | Bourns Inc. |
| Product Status | Obsolete |
| Q @ Freq | 30 @ 25MHz |
| Ratings | - |
| Series | 8230 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Wirewound |
