Bourns Inc.United States

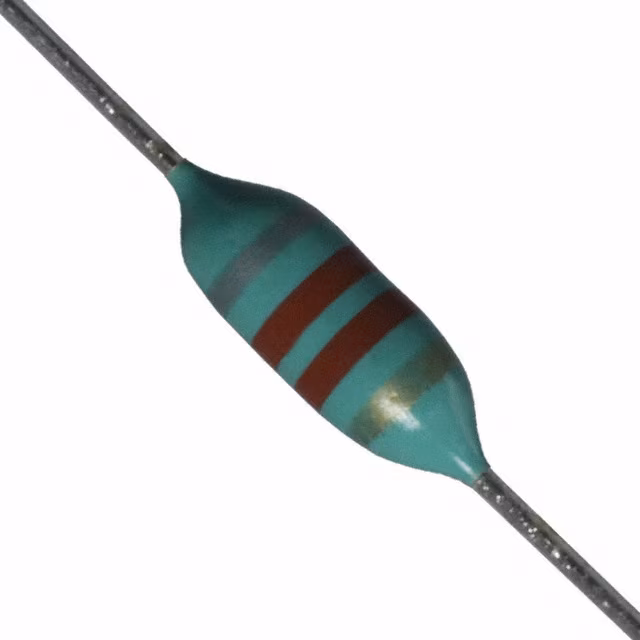

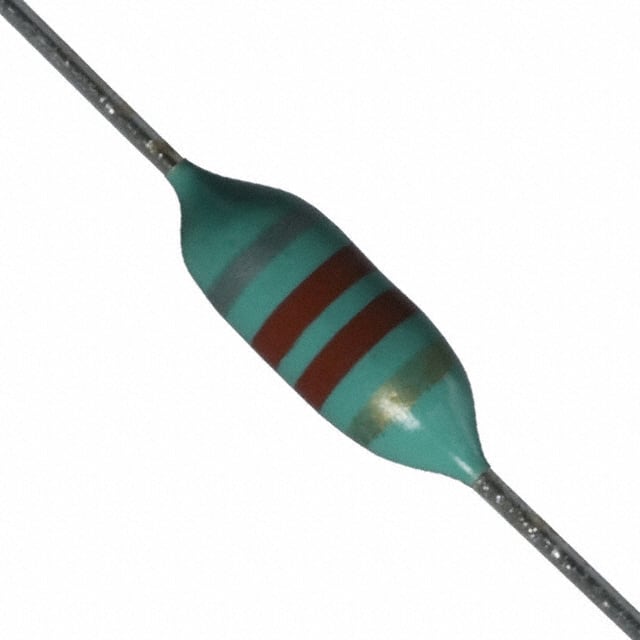

FIXED IND 220NH 935MA 140MOHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance220 nH
Rated current935 mAMax
DC resistance140 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 935 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 510MHz |
| Inductance Frequency - Test | 25 MHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Axial |

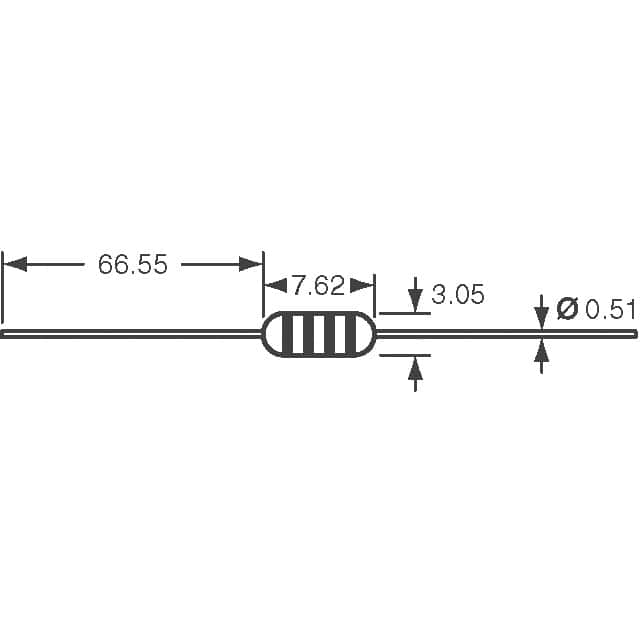

| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 8230 |
| DC Resistance (DCR) | 140mOhm Max |
| Inductance | 220 nH |
| Material - Core | Phenolic |
| Mfr | Bourns Inc. |
| Product Status | Obsolete |
| Q @ Freq | 33 @ 25MHz |
| Ratings | - |
| Series | 8230 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Wirewound |
