Bourns Inc.United States

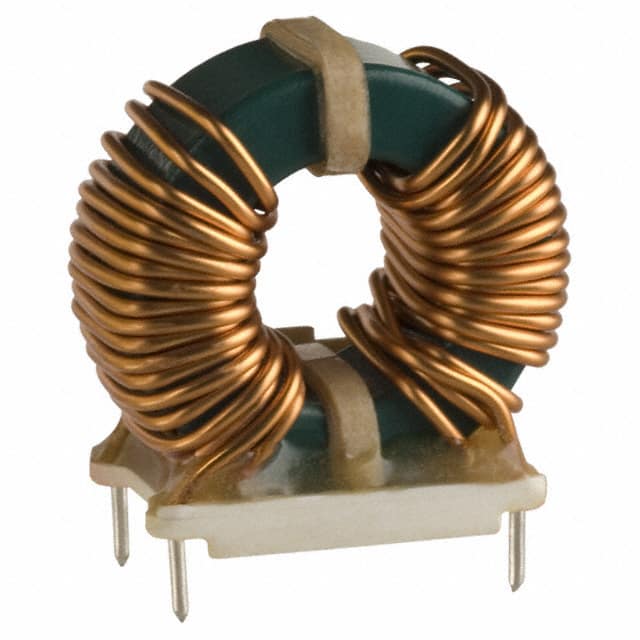

CMC 4MH 14.5A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating14.5 AMax
DC resistance12 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 14.5A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 4 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 1.650" (41.91mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |

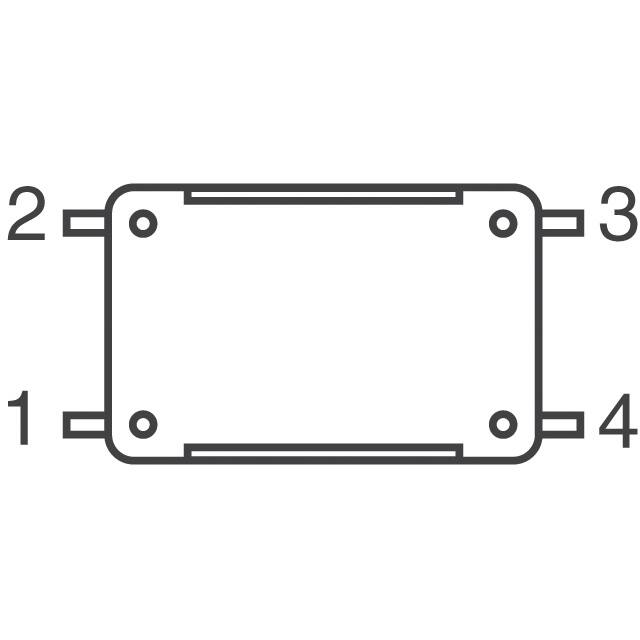

| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 1.700" L x 0.900" W (43.18mm x 22.86mm) |
| Other | |
| Approval Agency | - |
| Base Product Number | 8119 |
| DC Resistance (DCR) (Max) | 12mOhm |
| Features | - |
| Filter Type | - |
| Mfr | Bourns Inc. |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | 8100 |
