Century Spring CorpUnited States

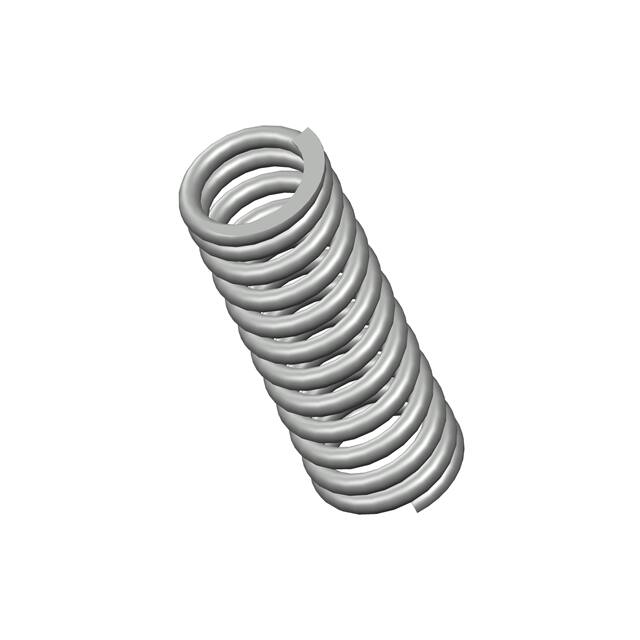

COMP O=1.250,L= 3.63,W= .177
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Diameter - Inside | 0.896" (22.76mm) |
| Diameter - Outside | 1.250" (31.75mm) |
| End Style | Closed & Ground |
| Finish | Zinc |
| Free Length | 3.630" (92.20mm) |
| Material | Hard Drawn |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 111.0 lbs/in |
| Series | - |
| Wire Diameter | 0.177" (4.50mm) |
