TE ConnectivitySwitzerland

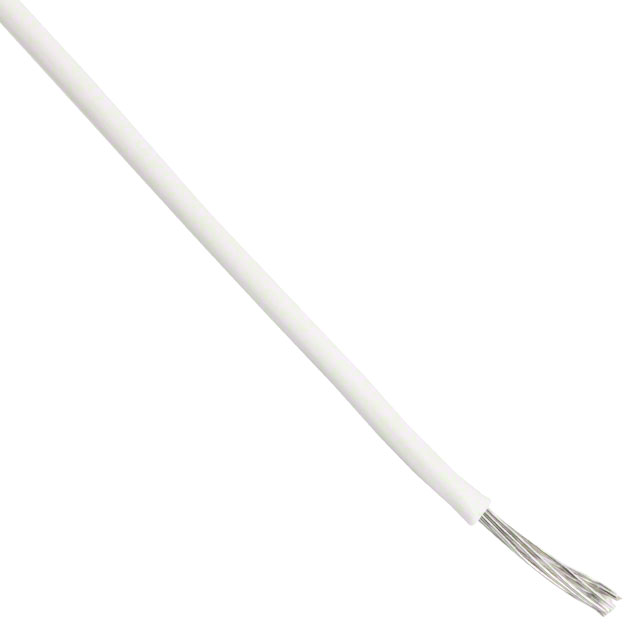

81044/12-24-904
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600V |
| Environment and package | |
| Grade | Military |
| Operating Temperature | -65°C ~ 150°C |
| Package | Bulk |
| Qualification | MIL-W-81044 and MIL-C-27500 |
| Other | |
| Base Product Number | 81044 |
| Cable Type | Hook-Up |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 19/36 |
| Features | - |
| Jacket Color | Black, White, Yellow Stripe |
| Jacket (Insulation) Diameter | 0.040" (1.02mm) |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF), Irradiated |
| Jacket (Insulation) Thickness | 0.0030" (0.076mm) |
| Length | - |
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Product Status | Active |
| Ratings | - |
| Series | 44A0111 |
| Wire Gauge | 24 AWG |
