Bourns Inc.United States

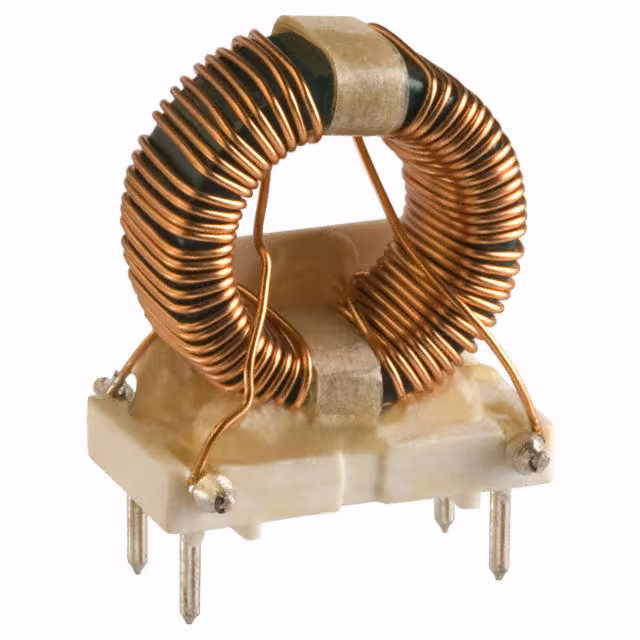

CMC 2.5MH 2.4A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating2.4 AMax
DC resistance90 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 2.4A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 2.5 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 0.900" (22.86mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |

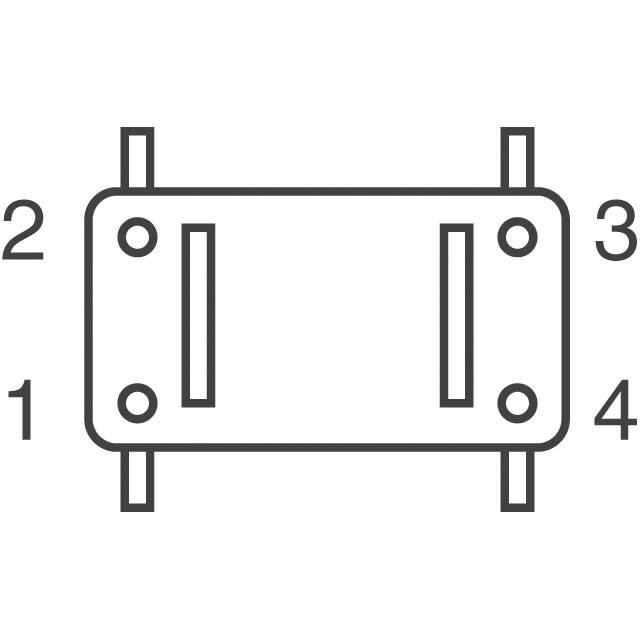

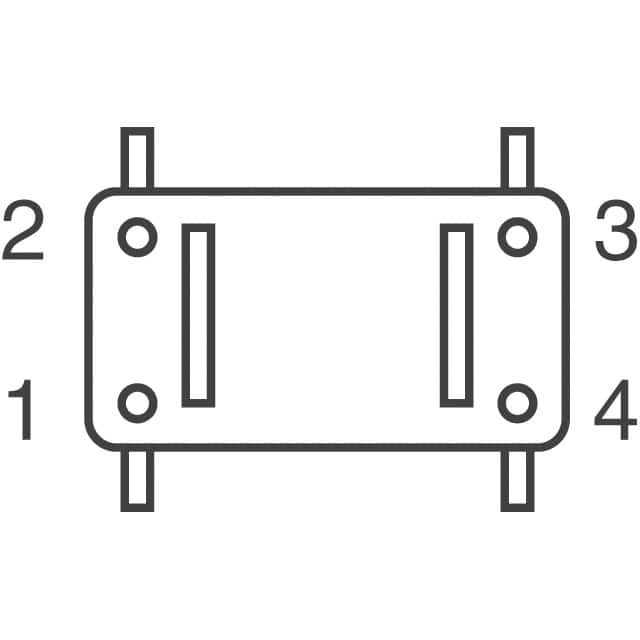

| Package / Case | Vertical, 4 PC Pin |

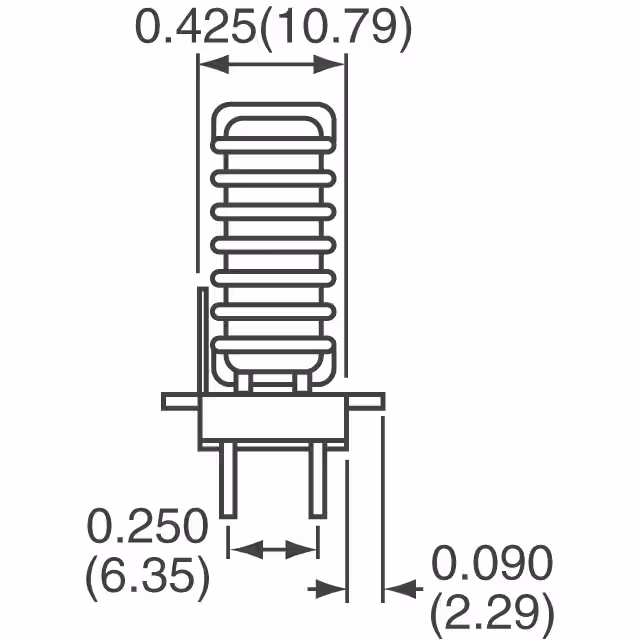

| Size / Dimension | 0.760" L x 0.425" W (19.30mm x 10.80mm) |
| Other | |
| Approval Agency | - |
| Base Product Number | 8102 |
| DC Resistance (DCR) (Max) | 90mOhm |
| Features | - |
| Filter Type | - |
| Mfr | Bourns Inc. |

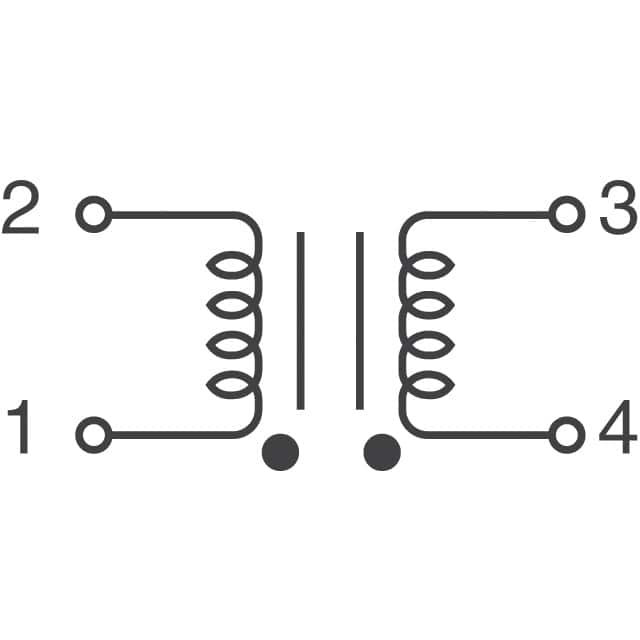

| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | 8100 |
